Details:

• Upgraded to Beam 3 in field in September 2024

• Sheet count: 3,233,225

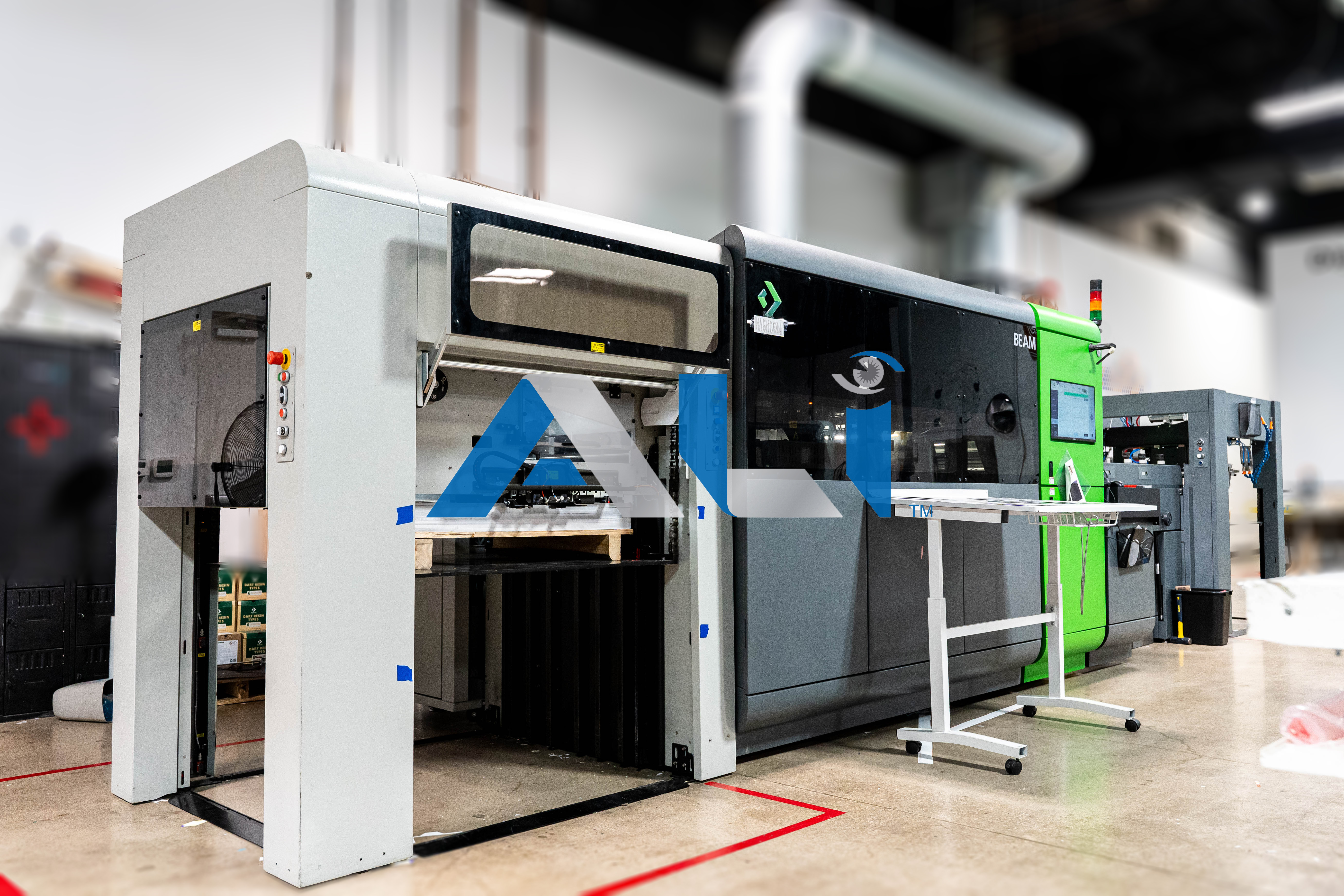

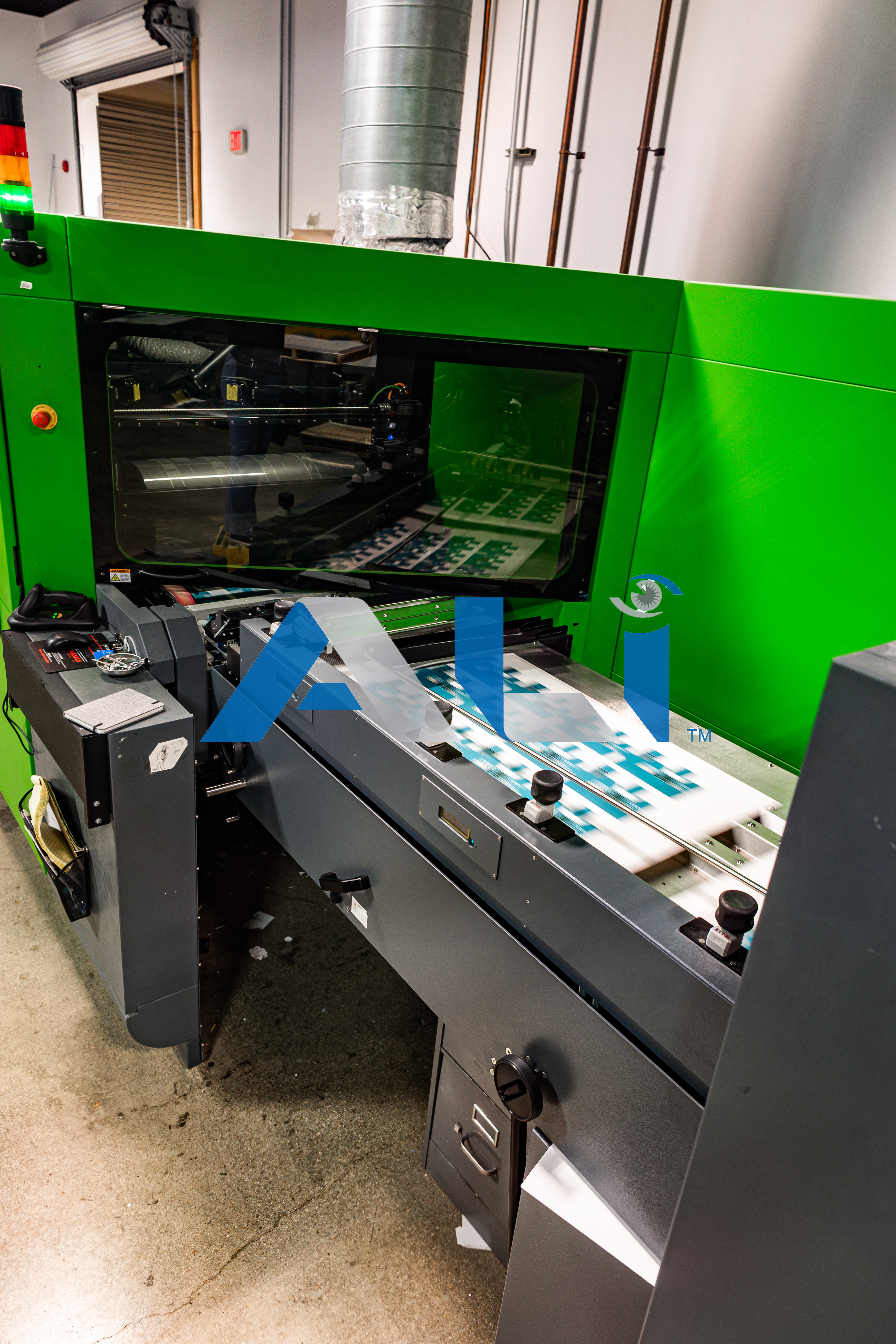

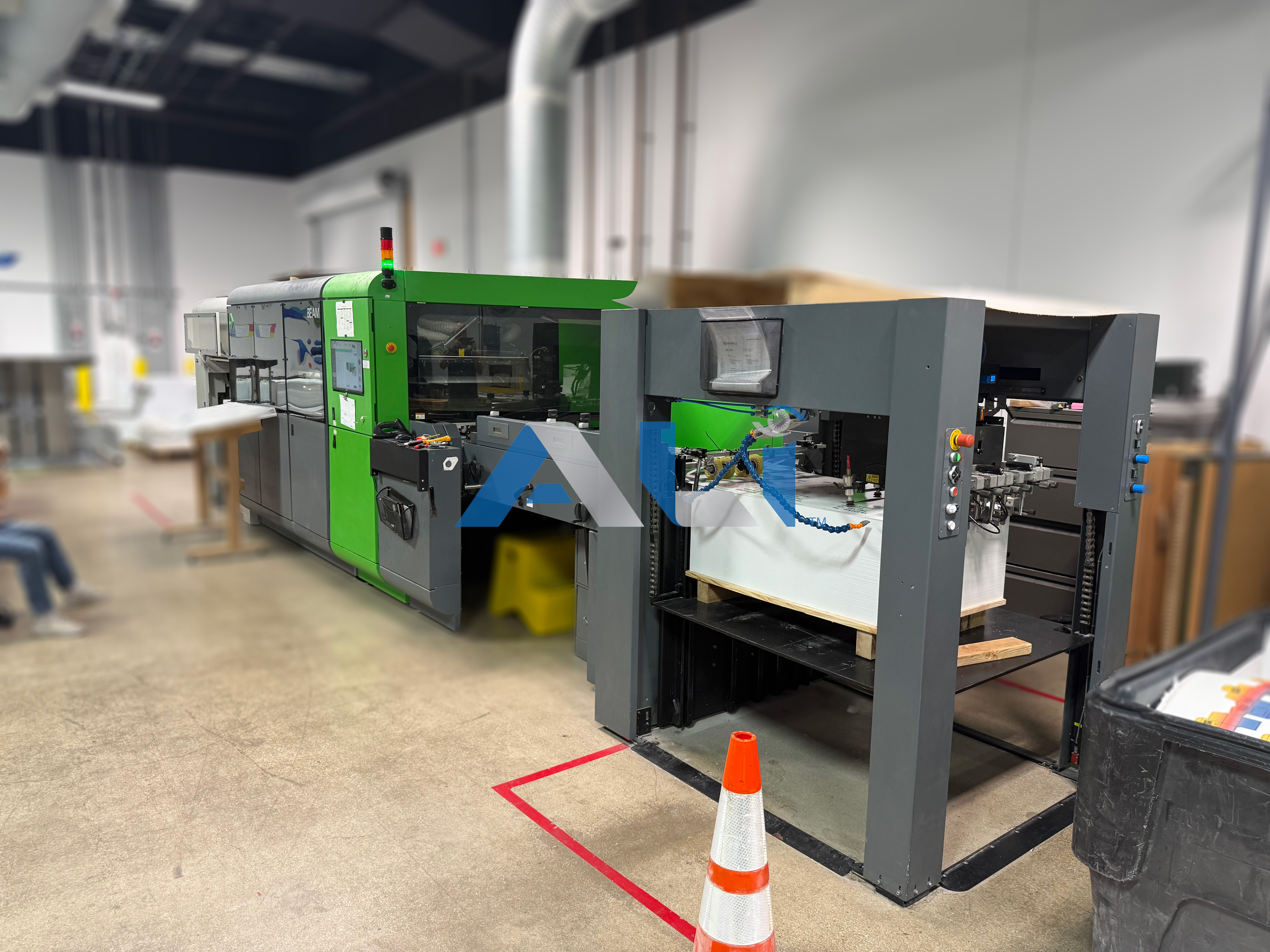

• Type: Sheet Fed Laser Die Cutter

• Comes with: Lauda chiller & Cyclone Exhaust unit

• Max Format: 30” x 42” (760 x 1060 mm)

• Min Format: 19.7” x 27.6” (50 x 700 mm)

• Substrate

• Catronboard & Labels cutting: 8 – 36 pt.

• Cartonboard & Label creasing: 8 – 24 pt.

• Microflute: 47 pt.

• Corrugated: 78 pt.

• Max throughput: 5000 s/h

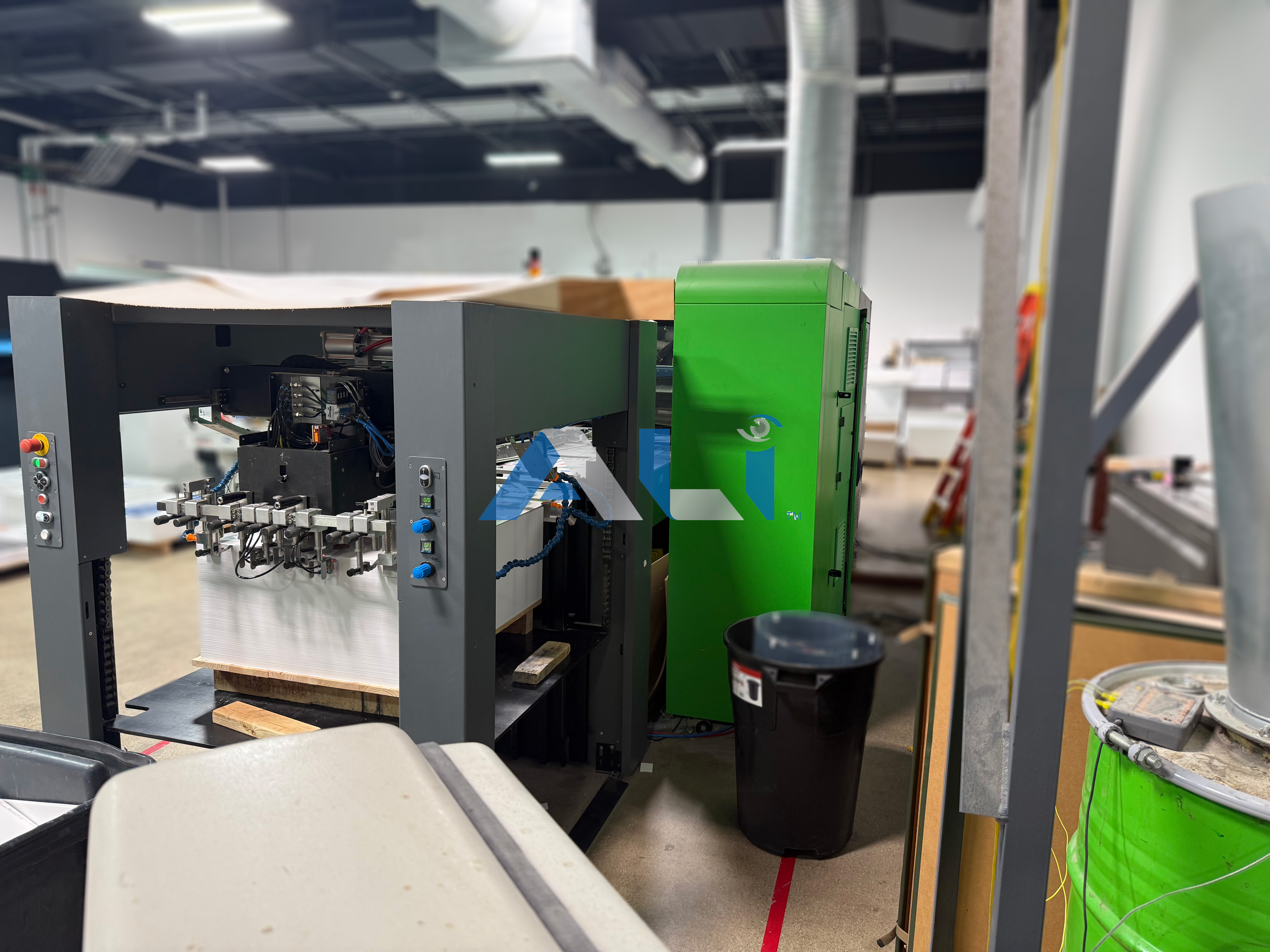

• Pile Height with pallet feeder: 3.6’

• Pile Height with pallet delivery: 3.3’

• Net cutting: 29” x 41” (745 x 1050 mm)

• Gripper margin: .47 (12 mm)

• Machine dimension: 28’ x 7’ x 7’

• Weight: 8 tons

• camera registration (so it's installed) but it didn't work for our application.

• CAD light is on the machine but whom ever buys it will need a full CAD license in order to edit/make cut and crease files
