ALI # 106334

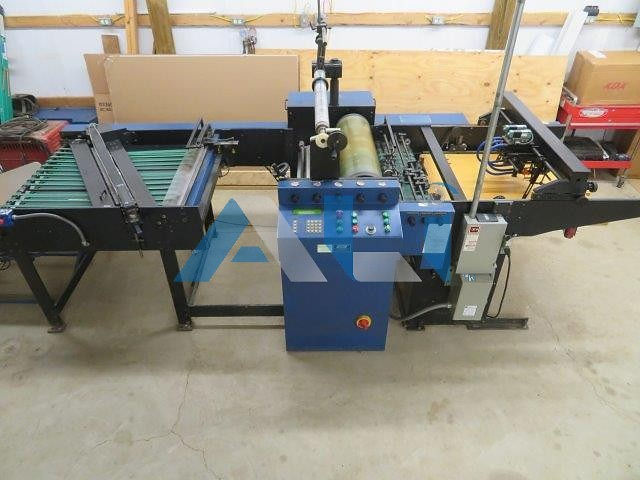

D&K make an industry tough Laminator, here is another great offering from Asset Liquidity's offset and bindery equipment.
Spec:

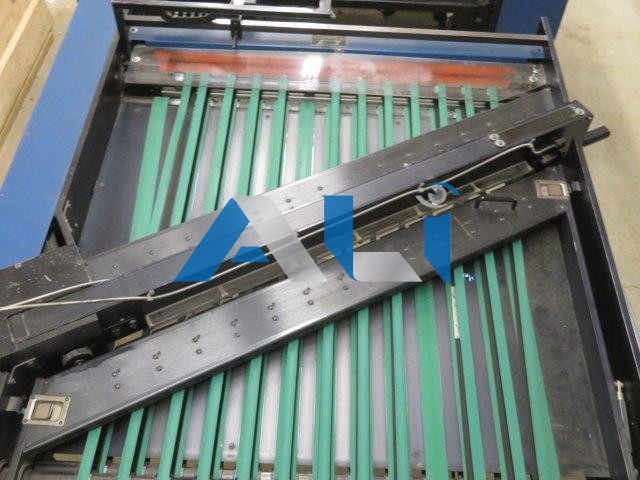

  • Model: 3215 with Angeled Knife Separator

  • Manufacturer: D&K

Dimensions

  • Floor Space 5'6" W x 16' L x 6'6" H

  • Clearnace 3' non operator side 5' all other sides

Sheet Size Spec

  • Min Sheet Length 16"

  • Max Sheet Length 40"

  • Min Sheet Width 9"

  • Max Sheet Width 31.5"

  • Min Sheet thickness .004"

  • Max Sheet thickness .018"

  • Max Pile height 28" (working pile height 25")

Film Spec

  • Film Type Polyester (PET), polypropylene (OPP), Nylon (Curl Free)

  • Min film thickness 1 mil

  • Max film thickness 3 mil (OPP), 1.5mil (PET and Curl Free)

  • Max roll weight 150lbs

  • Max roll diameter 18"

  • Max roll width 32"

  • Film load times 3 - 5 minutes


Performance Spec

  • Sheet loading times 10 - 15 minutes

  • Machine Warm up Time 10oF / minute

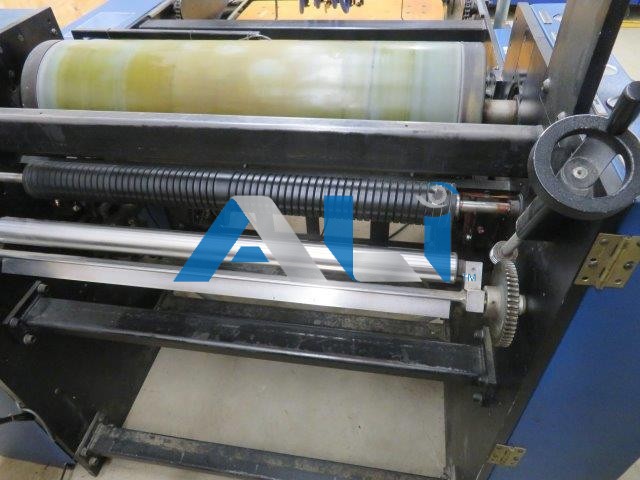

  • Heated roller type 10" damter NT, Duralon coated

  • Embossing Chrome coated

  • Slitting To Core -- 16" max from one end

  • Temperature Range 70o - 360o F

  • Running Temperature 230o - 260o F

  • Speed 0 - 200 fpm

  • Sheets / HR Estimated

    • 11x17 = 125 fpm (5200)

    • 17x22 = 150 fpm (4900)

    • 20x26 = 175 fpm (4800)

    • 28x30 = 200 fpm (4600)
