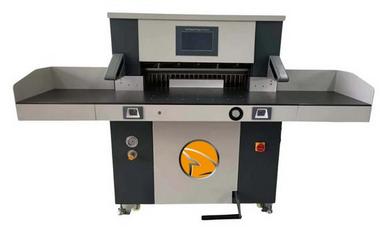

ALI # 801007

Details:

  • ​Maximum cutting width - 26.5in. / 67.3cm

  • Maximum cutting depth - 26.5 in / 67.3cm

  • Minimum cutting size - 0.79 in / 2cm

  • Clamp Opening Height - 3.35 in / 8.5cm

  • Work space (edge to blade) - 20.5 in / 52 cm

  • Cutting - Hydraulic

  • Clamping - Hydraulic

  • ​Air Bed - Yes

  • Blade Depth Adjustment - Yes

  • Foot Pedal - Yes

  • Side Tables - Optional

  • Size of side tables (each) - 16.5x16.5 in. / 41.91x41.91cm

  • LED Cut Line Light - Yes

  • LCD Touch Screen Display - Yes, 10"

  • Fully Programmable - Yes

  • Job Memory - 100 Programs with up to 30 cuts each

  • Light Safety Beams - Yes

  • Power - 220v, 50/60 hz, 20A, Single Phase

  • Weight - 1,124 lbs / 510 kg

  • Size w/ side tables (LxWxH) - 57.5 x 73.5 x 57.25in / 146.05 x 186.7 x 145.4cm

  • Size without side tables (LxWxH) - 57.5 x 40 x 57.25in / 146 x 101.6 x 145.4cm

  • Safety Standards - Complies with latest CE safety standards

  • Warranty - 1 year
