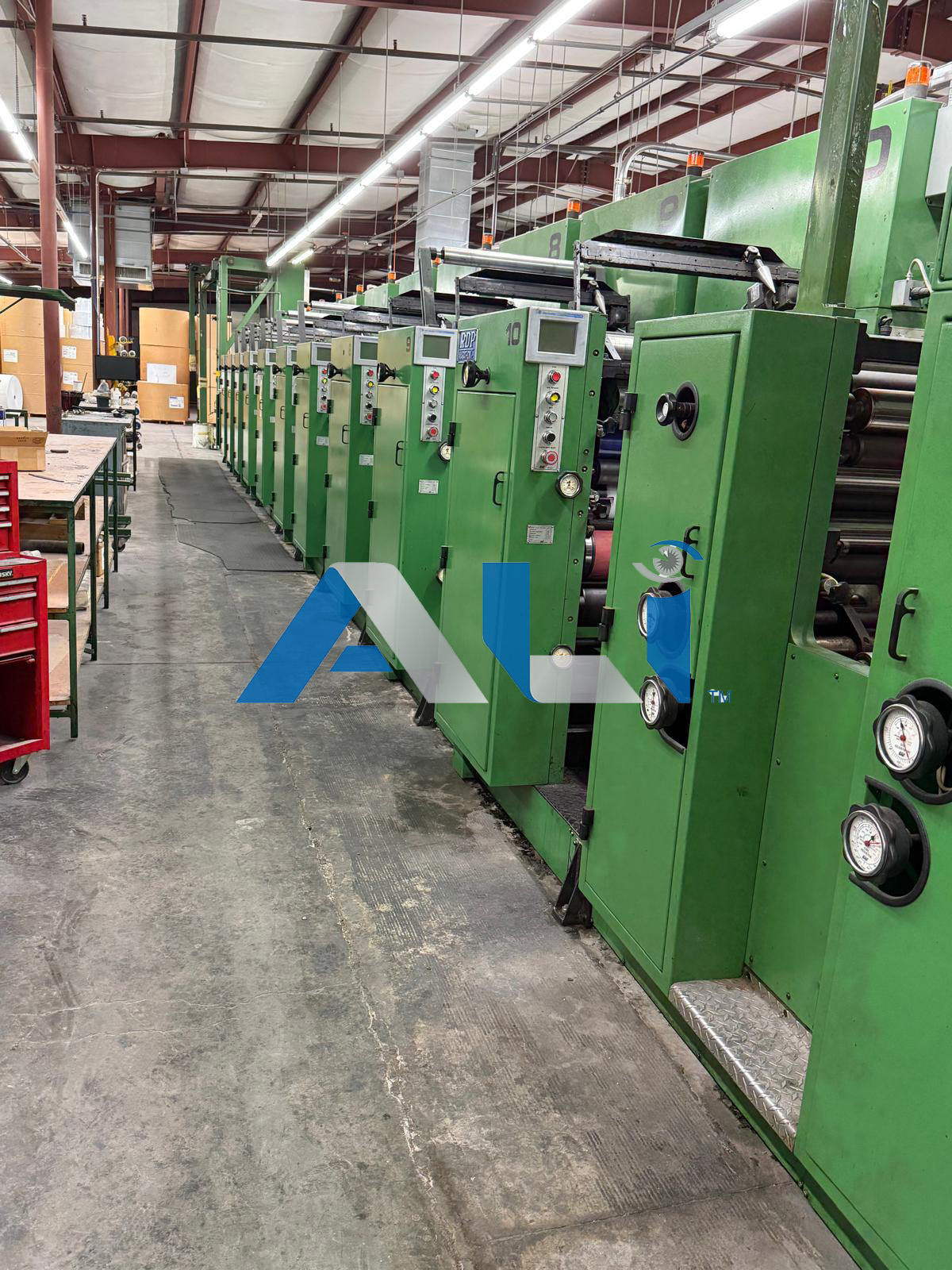

’92 / ’96 / 2012 / 2013 RDP 260 10 Color Scratch Off Press
22” x 26 ½” web width
Press was used for Presser Sealer Mailers, Lottery Scratch Offs, Number Coupons, Postcards and can be used for more.

Originally 1992 Purchased with 4 units
In 1996 4 original units rebuilt with UV. 6 more units were added for 10 units with UV. Also installed in 1996 was a applying re-moist, scratch off, and varnish, as well as UV and RF drying capabilities.
2012 Hot air drying was added for aqueous coating.
2013 two sided silicone applicator added.

General

• Speed - Mechanical Drive -50fpm to 1500fpm

• Gear Lubrication - Continuous oil bath   Drive Train - Tubular drive shaft with flexible steel disk couplings at gear boxes.

• Press Drive - Electric DC Drive 150 HP

• Max web width - 26 1/2"

• Max print width - 26"

• Print cylinder circumference - 22"   Web Break Detectors - Electric eye style mounted over the web   ET web guide

• Frames - 2" thick cast iron (34" inside frames)


Unwind

• Martin Model EC Plus- 1526 Automatic Splicer

• Max splicing speed - 1500fpm

• Max web width - 26 1/2"

• Max roll weight - 1800 lbs

• Max roll diameter - 52"

• Two pneumatic core shafts (3", 5" dia)

• Web Cleaner

• Doyle Web Cleaner

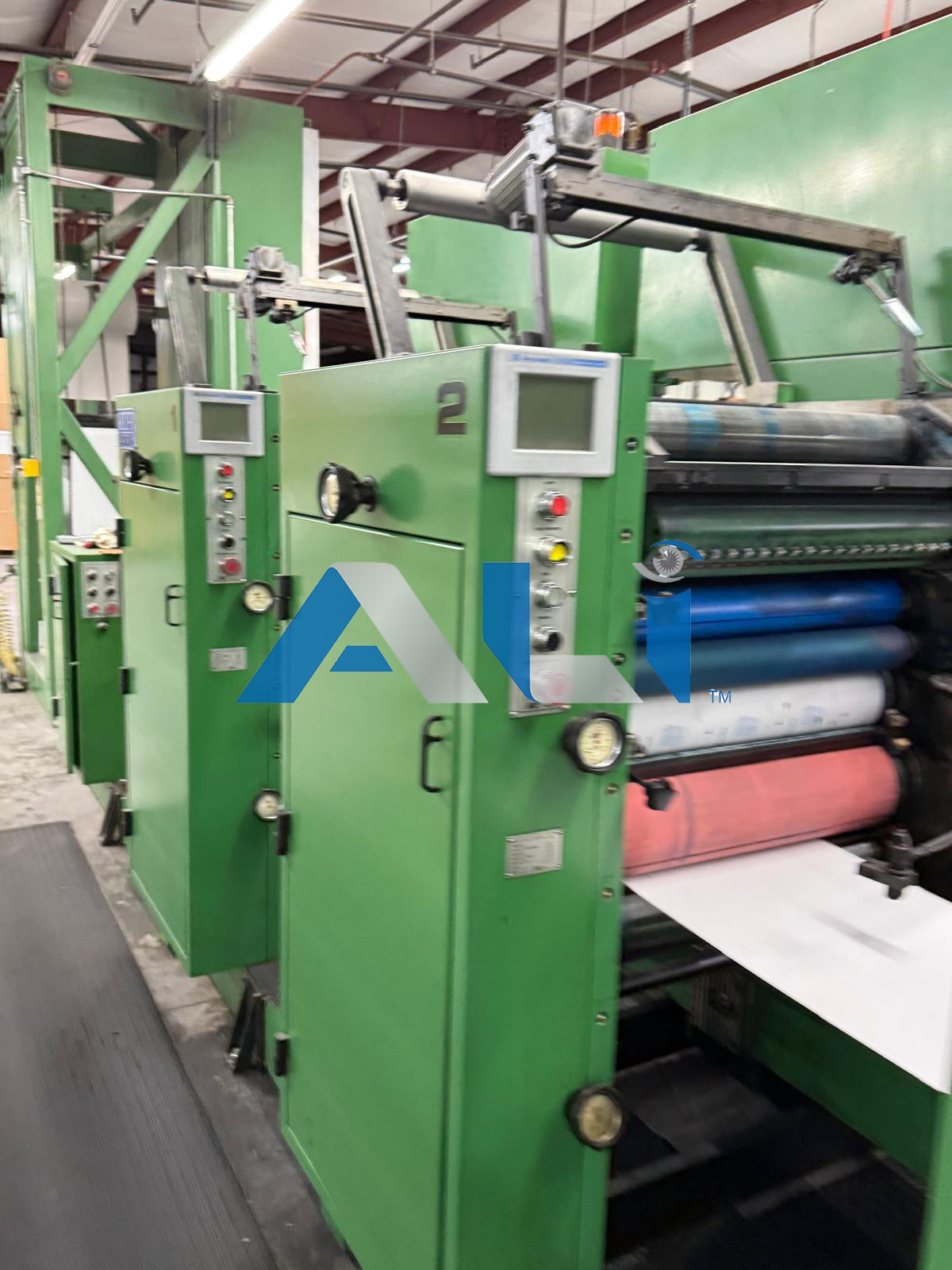

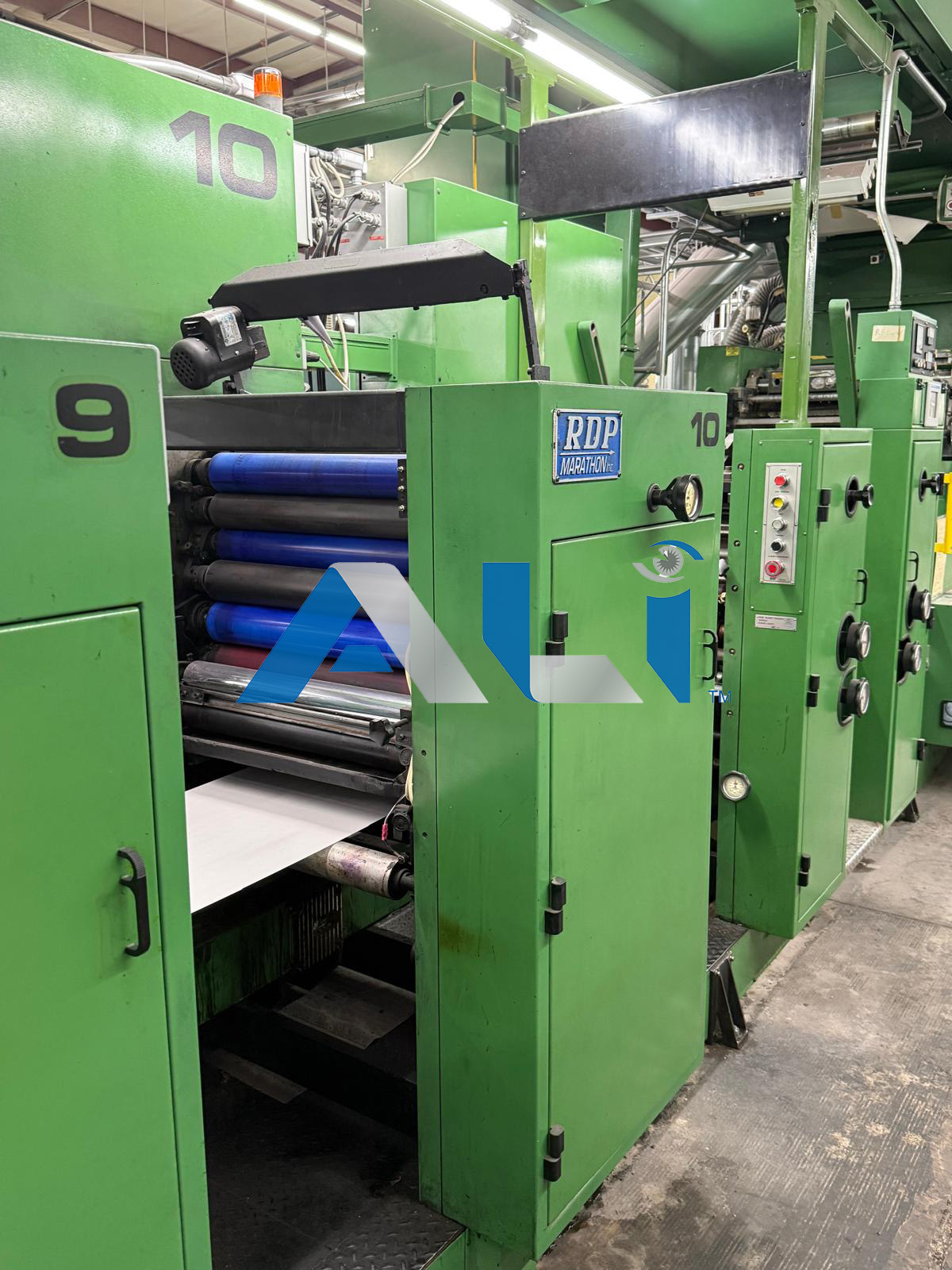

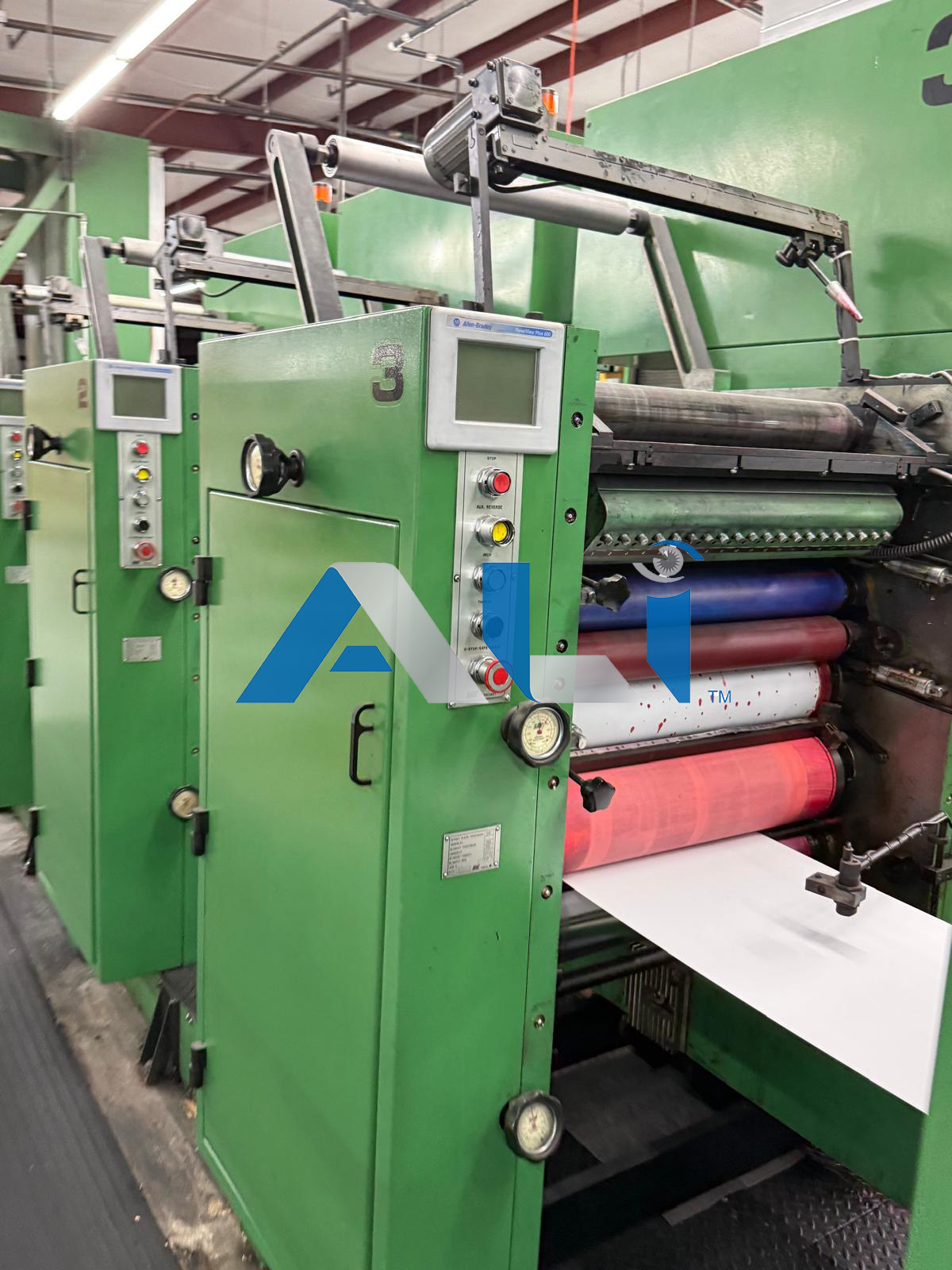

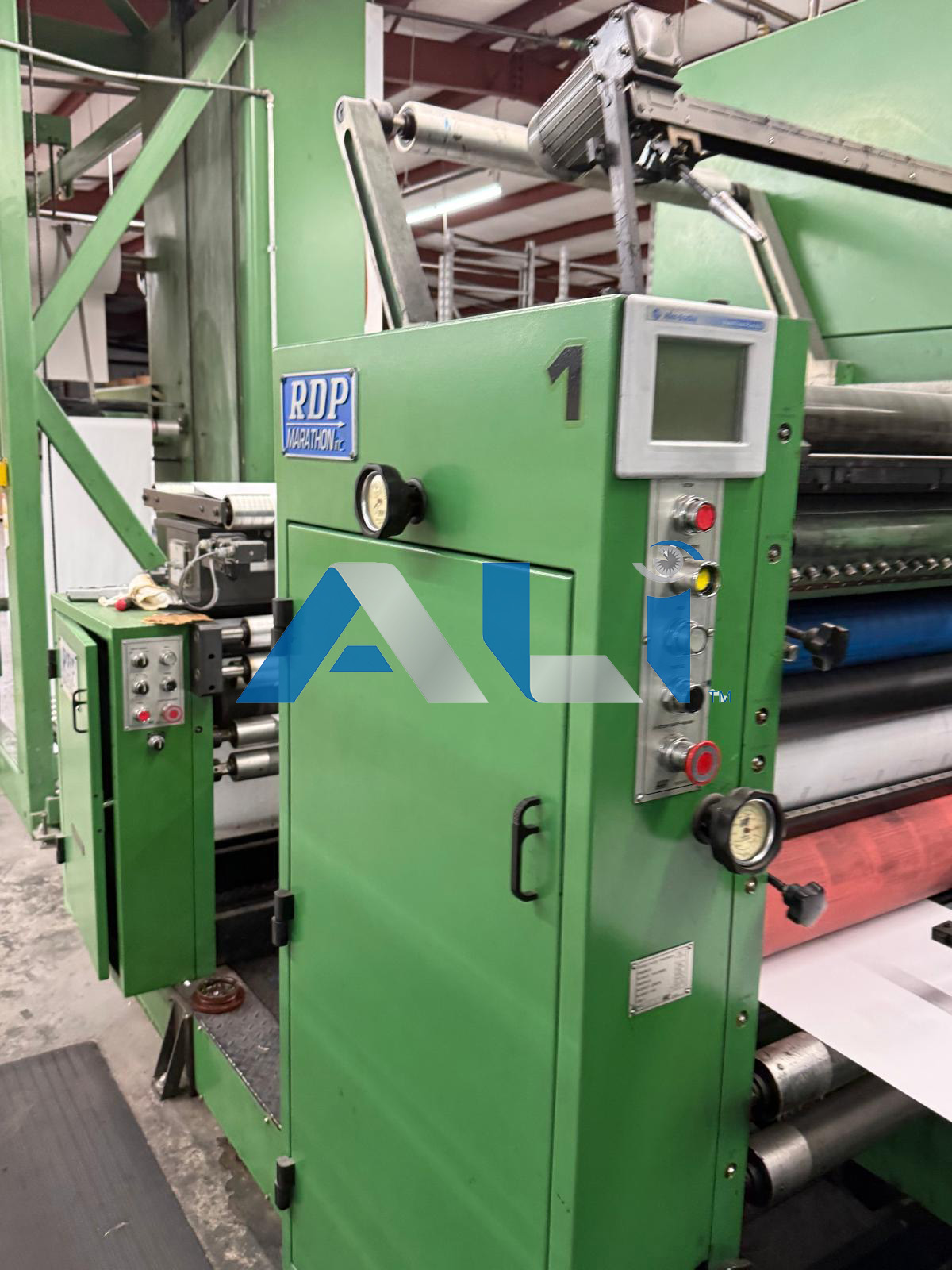

Print Units

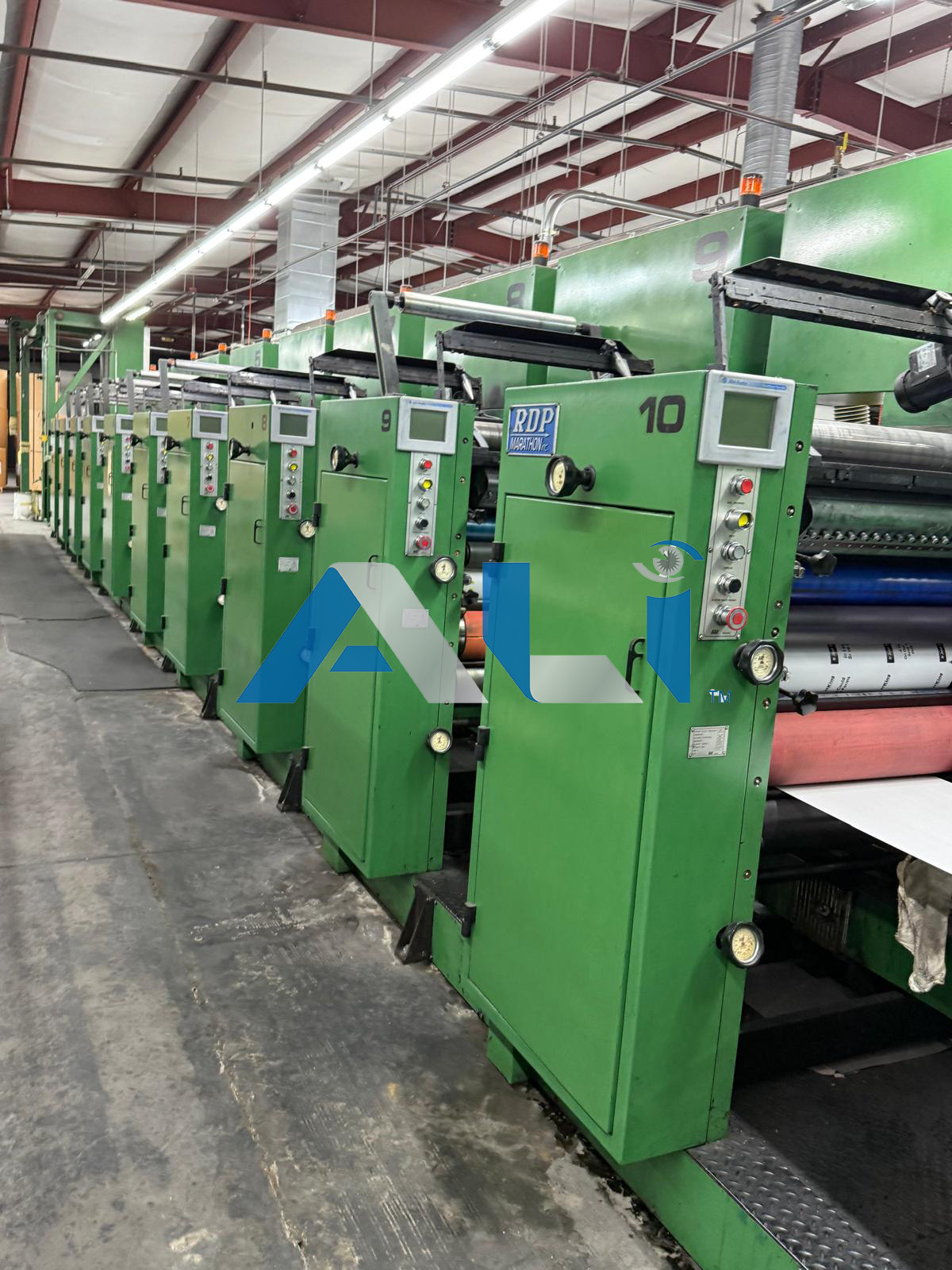

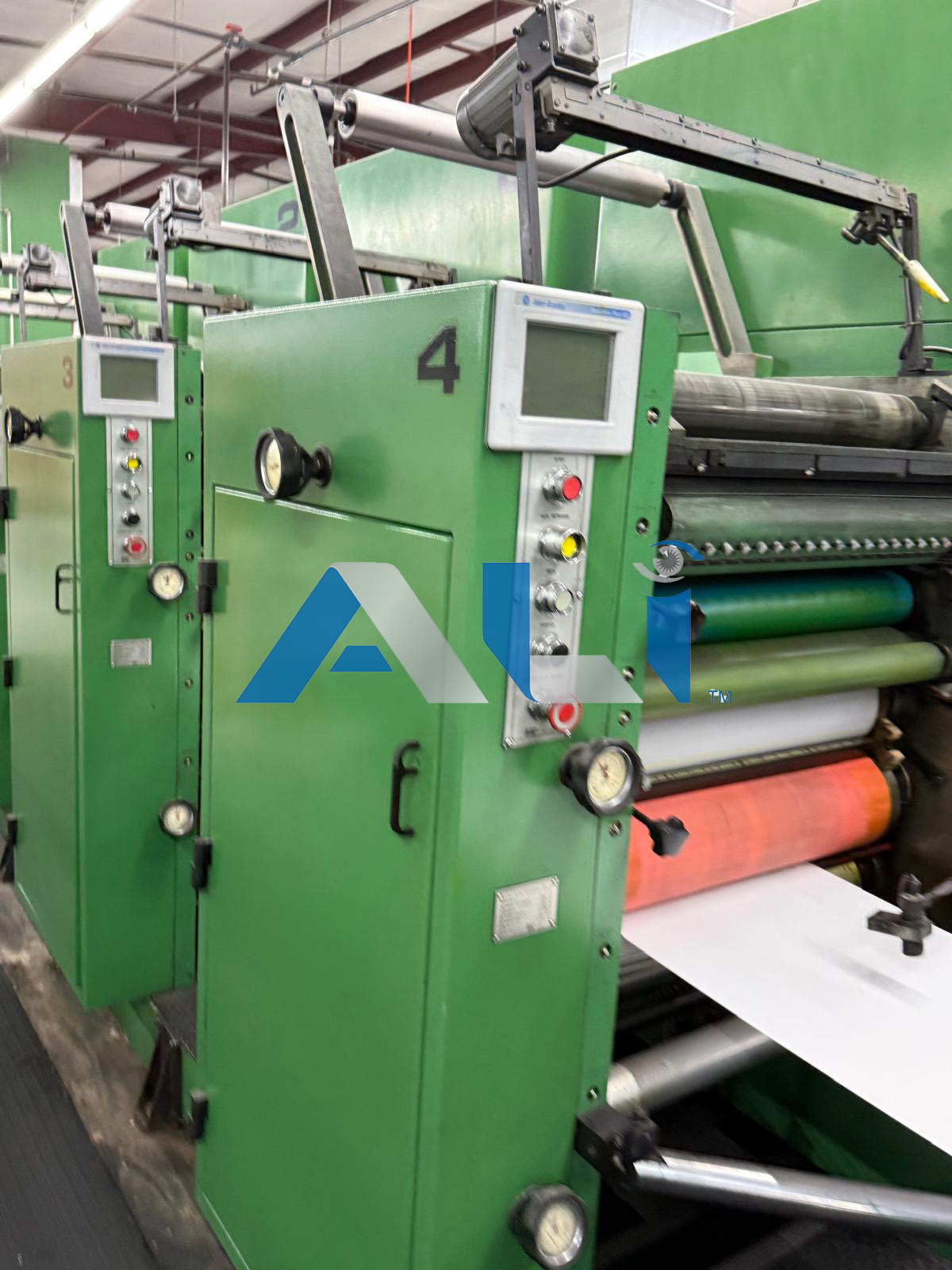

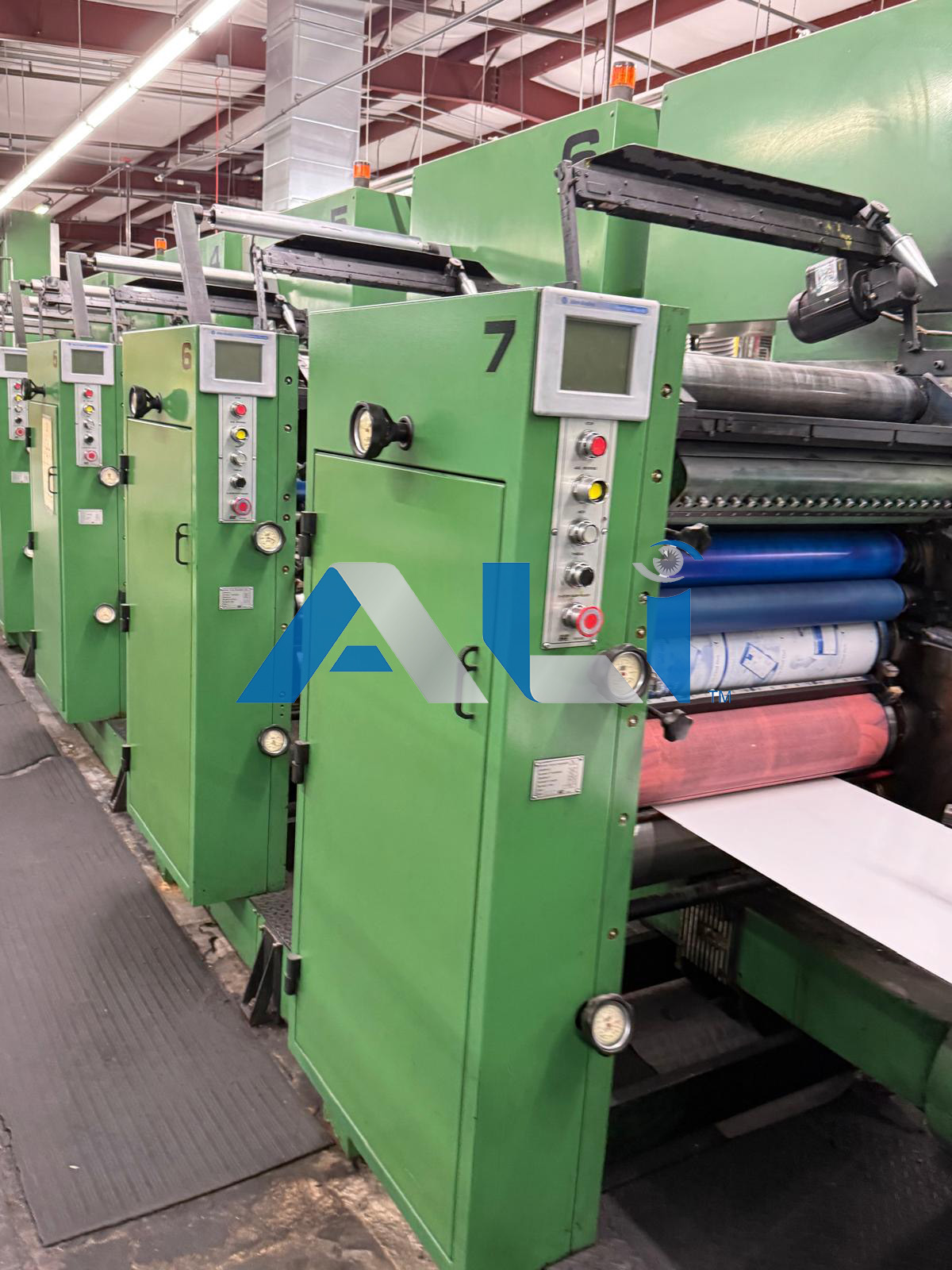

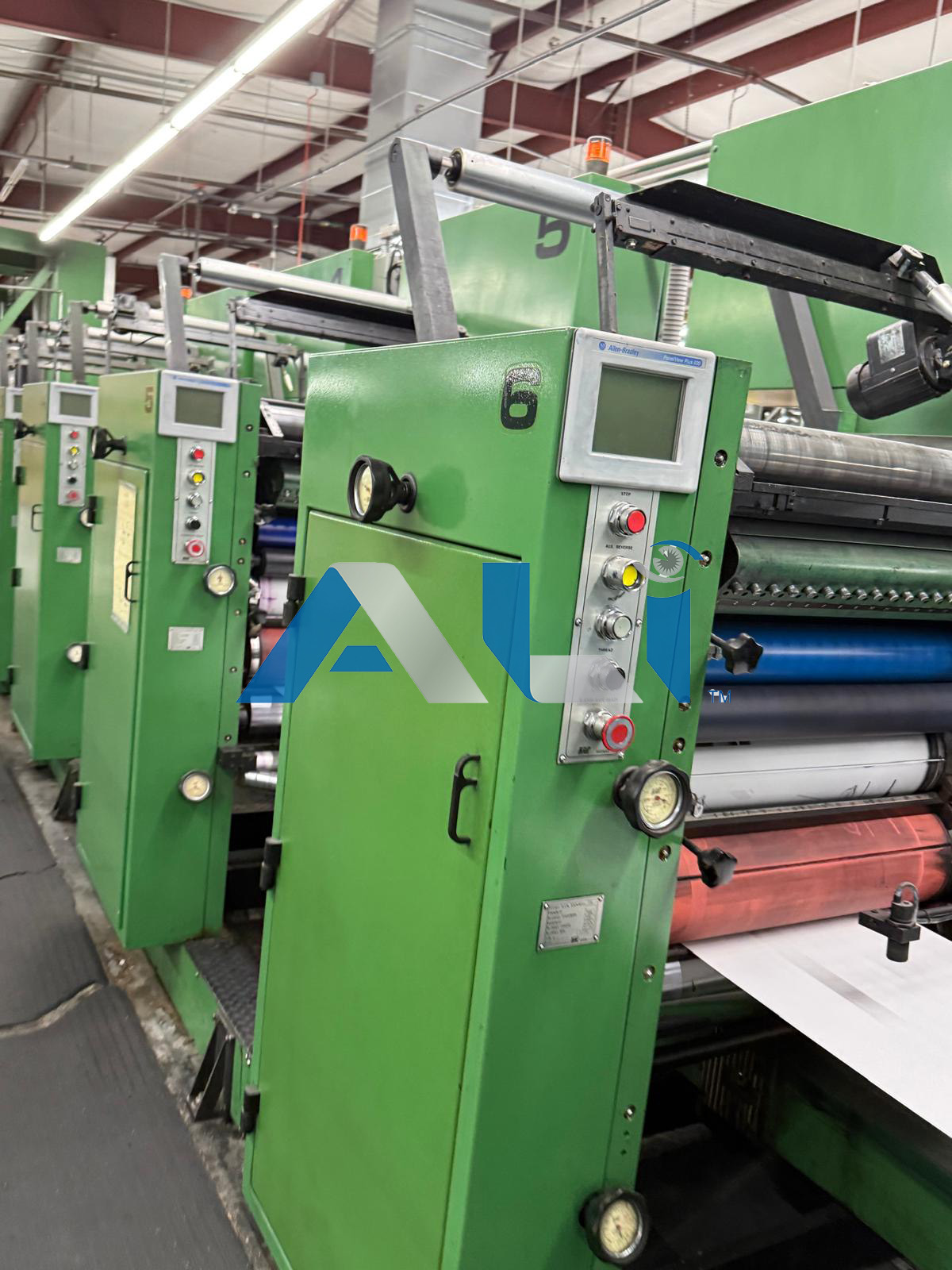

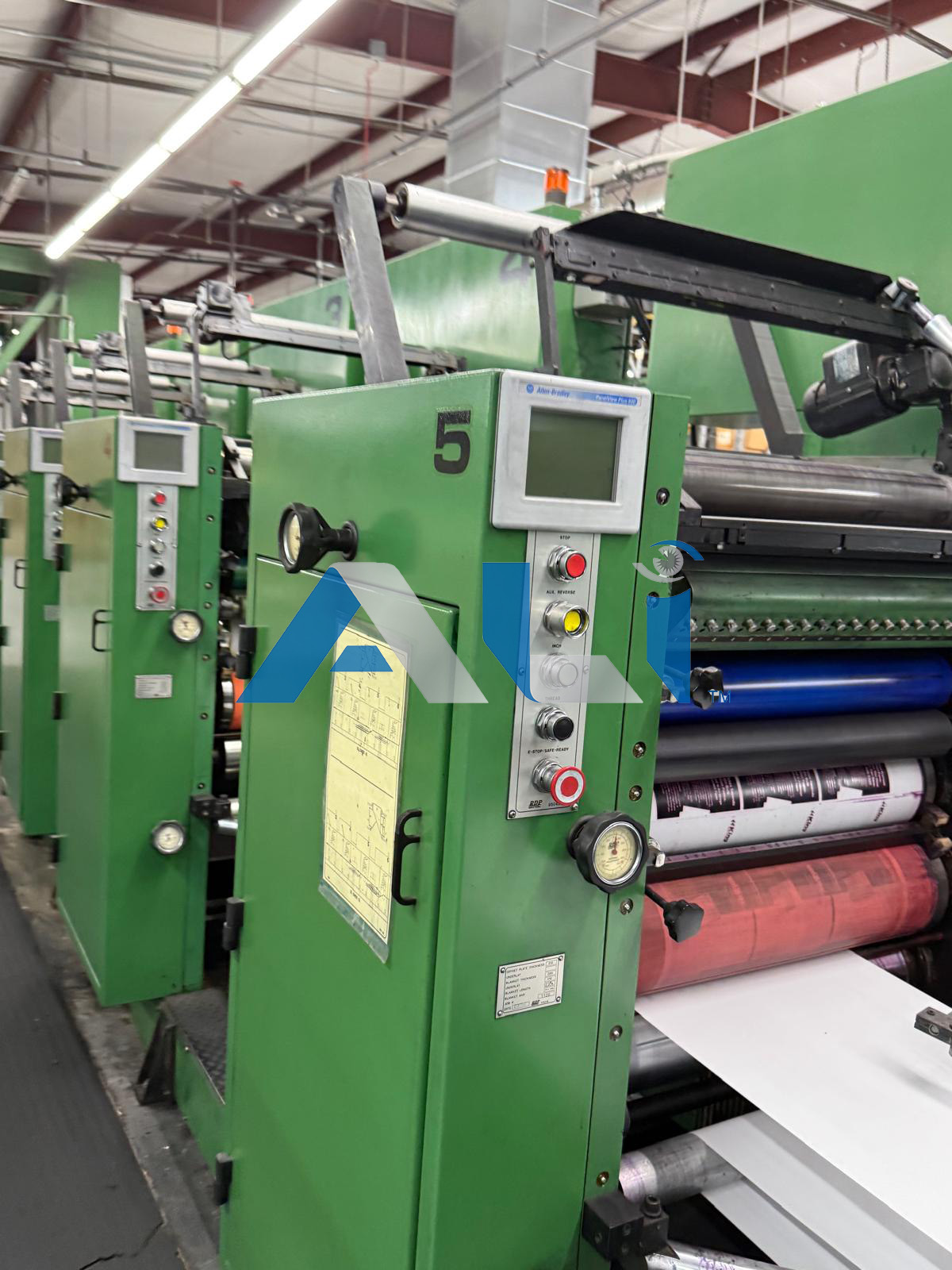

• No. Units - 10

• Reel-in Blankets

• Motorized Circ. Register with remote control

• Motorized plate side lay with remote control

• Plate cylinder skewing and form roll adjustment

• Auxiliary Unit drive motors

• 360 deg circumferential gear boxes

• Dahlgren dampening system

• Master Flo SFIOO Central Refrigerated circulator for dampening (10 units)

• Chilled vibrators each unit (Master Flo Chiller)   Ink Agitators

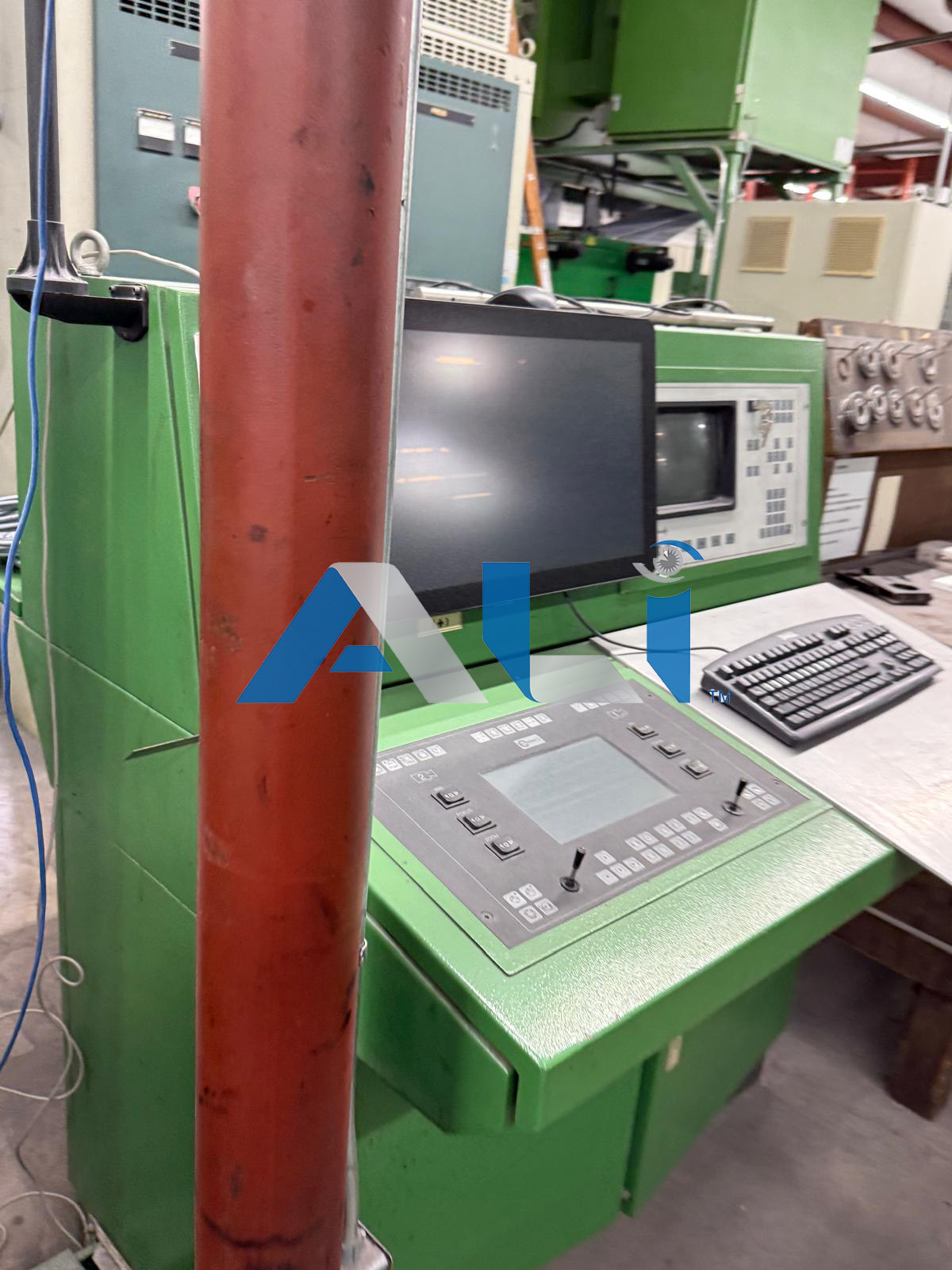

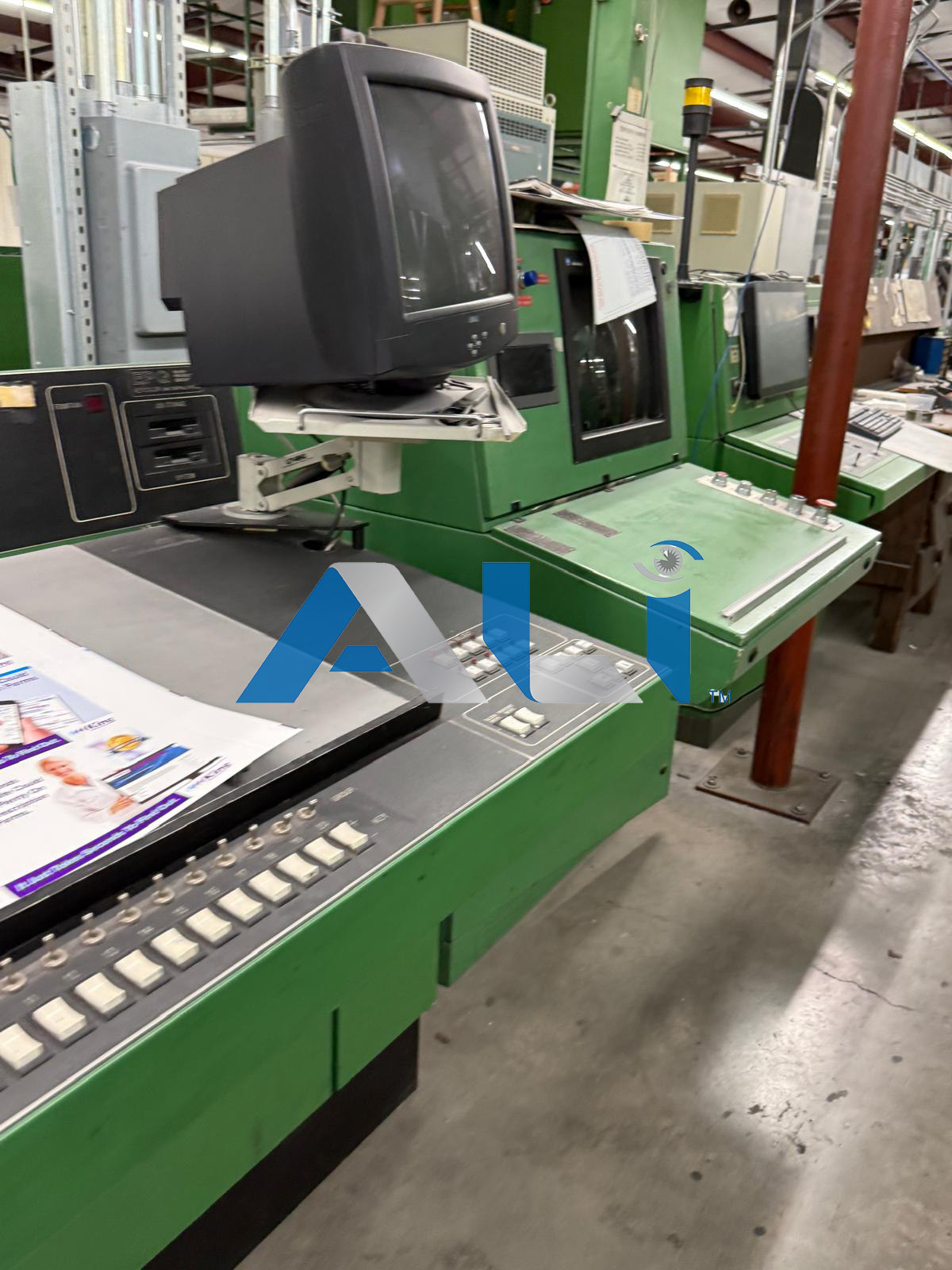

• EPG motorized ink key controls with operator console   Auto ink roll wash-up


Back Printing

• Print units 1-4 are reversible

• Hockey sticks on print units 1-6, 9

• Turn bars between units 4-5, 5-6


UV Dryers

• Prime UV curing system

• Prime Smart system control

• Three units for positioning after unit l, 4, 5 or 1

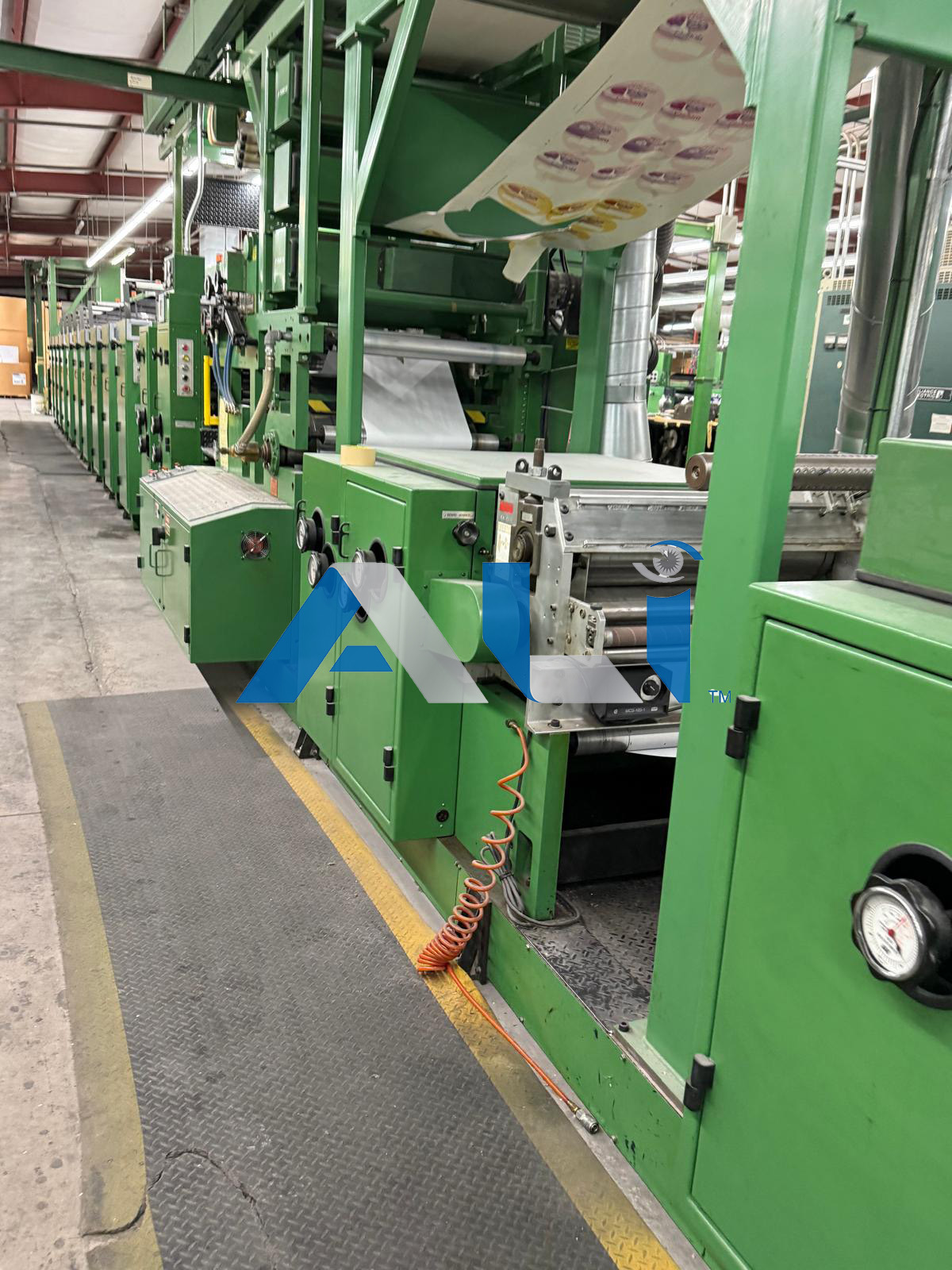

Other In-Line Features

• Double numbering unit (constructed for arabic numbering, barcoding or marginals)

• IDC combination remoist / scratchoff / varnish unit

• Prime UV and Proctor Strayfield model SW 25/76 RF dryer for above unit   Double filehole unit

• DK Hart die cutter with rewind

• Processing unit inc. linehole punching, vertical perfs (3 shafts) and two cross perf cylinders


ADDITIONS

• In-Line Coating Equipment Additions

• Megtec Silicone Applicator (Added June 2012)

• ASI Hot Air Drying System for Aqueous Coating

• (Added June 2012)

• Modified Silicone Applicator to 2 Sided (Added February 2013)

• Register Control

• Electromat auto register and cut-off control

• Electromat inspection system for two-sided viewing


Folder

• Fordyce VS 1326 single stream

• Max web width - 26 1/2"


Sheeter

• Egan (John Brown) Model VB1026LC Sheeter


Batcher Stacker

• Date 3/31/92

• Retrofit for 44" pile (Added November 2012)


Rewinder

• WTI Turret Rewinder (Mod. No. 50/26.5/1200)
