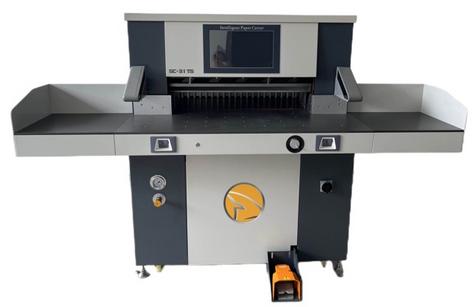

ALI # 801006



Details:

  • Maximum cutting width - 32.2in.

  • Maximum cutting depth - 32.2 in

  • Minimum cutting size - 0.79 in / 2cm

  • Clamp Opening Height - 4 in / 10.16cm

  • Work space (edge to blade) - 22 in / 55.88 cm

  • Cutting - Hydraulic

  • Clamping - Hydraulic

  • ​Air Bed - Yes

  • Blade Depth Adjustment - Yes

  • Foot Pedal - Yes

  • Side Tables - Yes

  • Size of side tables (each) - 18x18 in. / 45.72cm

  • LED Cut Line Light - Yes

  • LCD Touch Screen Display - Yes, 15"

  • Fully Programmable - Yes

  • Job Memory - 100 Programs with up to 30 cuts each

  • Light Safety Beams - Yes

  • Power - 220v, 50/60 hz, 20A, Single Phase

  • Weight - 1763.7 lbs / 800 kg

  • Size w/ side tables (WxLxH) - 85” x 64.5” x 58in / 219.9 x 163.83 x 147.32cm

  • Size without side tables (WxLxH) - 64.5 x 49.5 x 58.5in / 163.83 x 125.73 x 148.59cm

  • Safety Standards - Complies with latest CE safety standards

  • Warranty - 1 year
