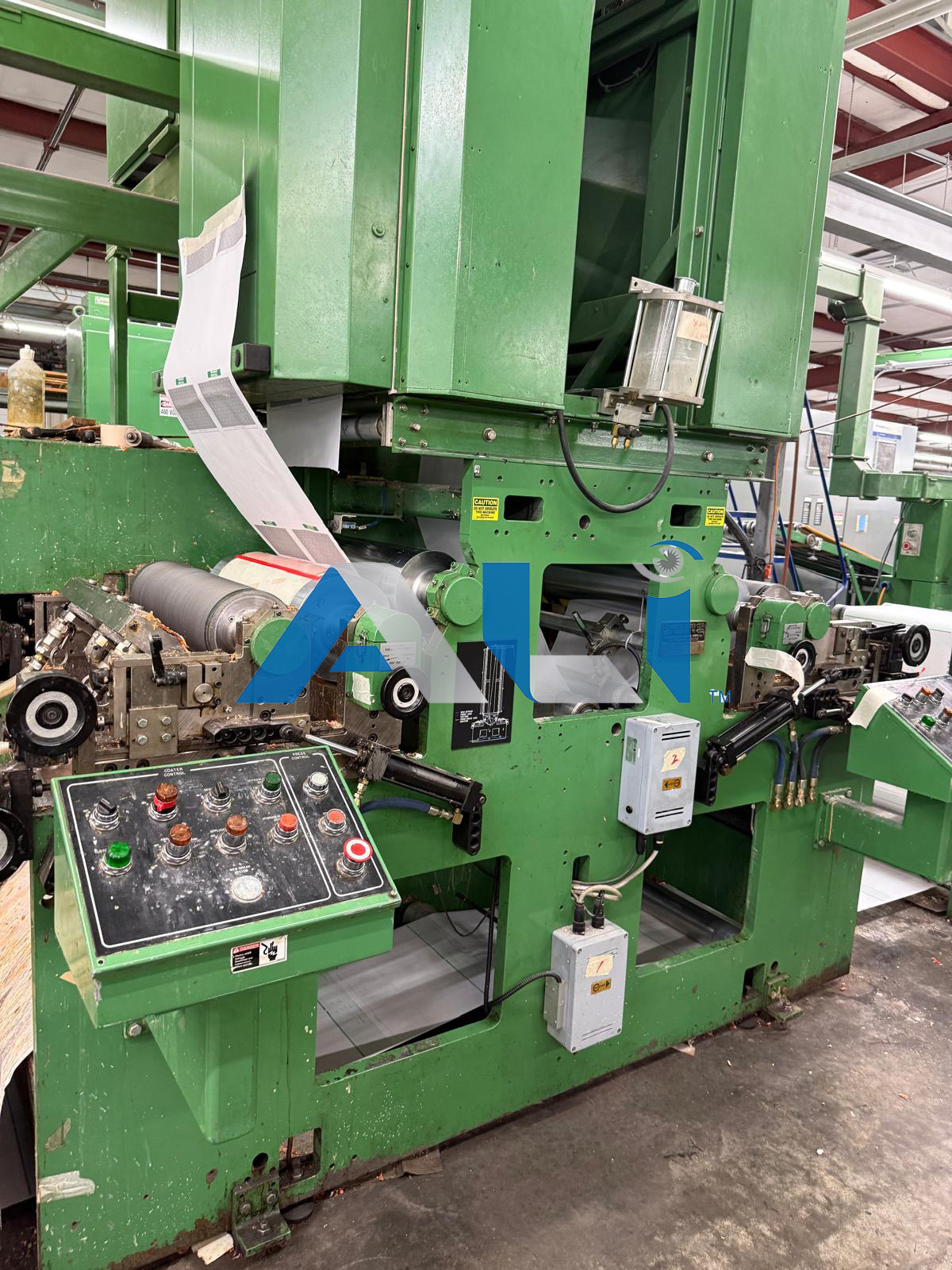

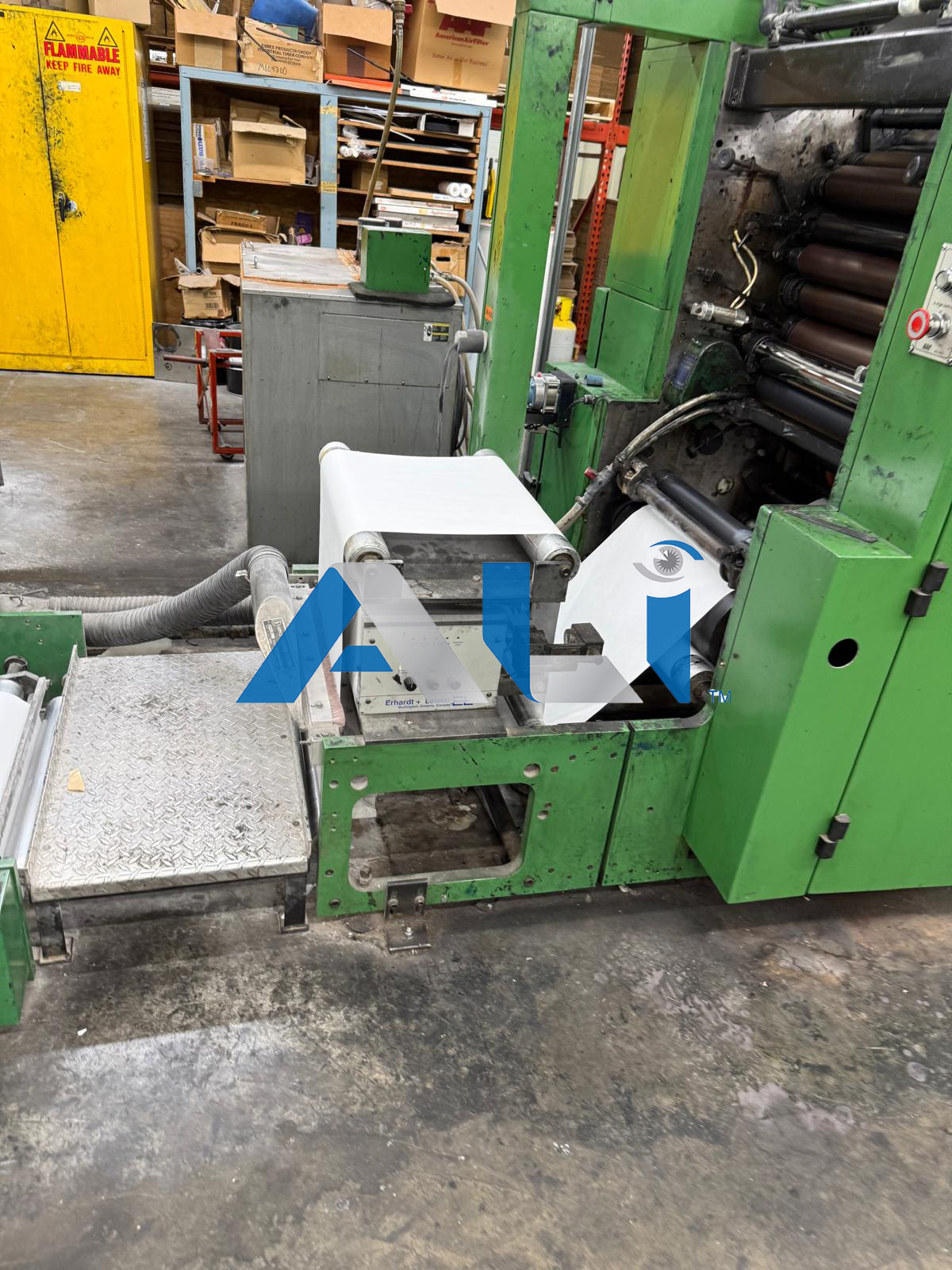

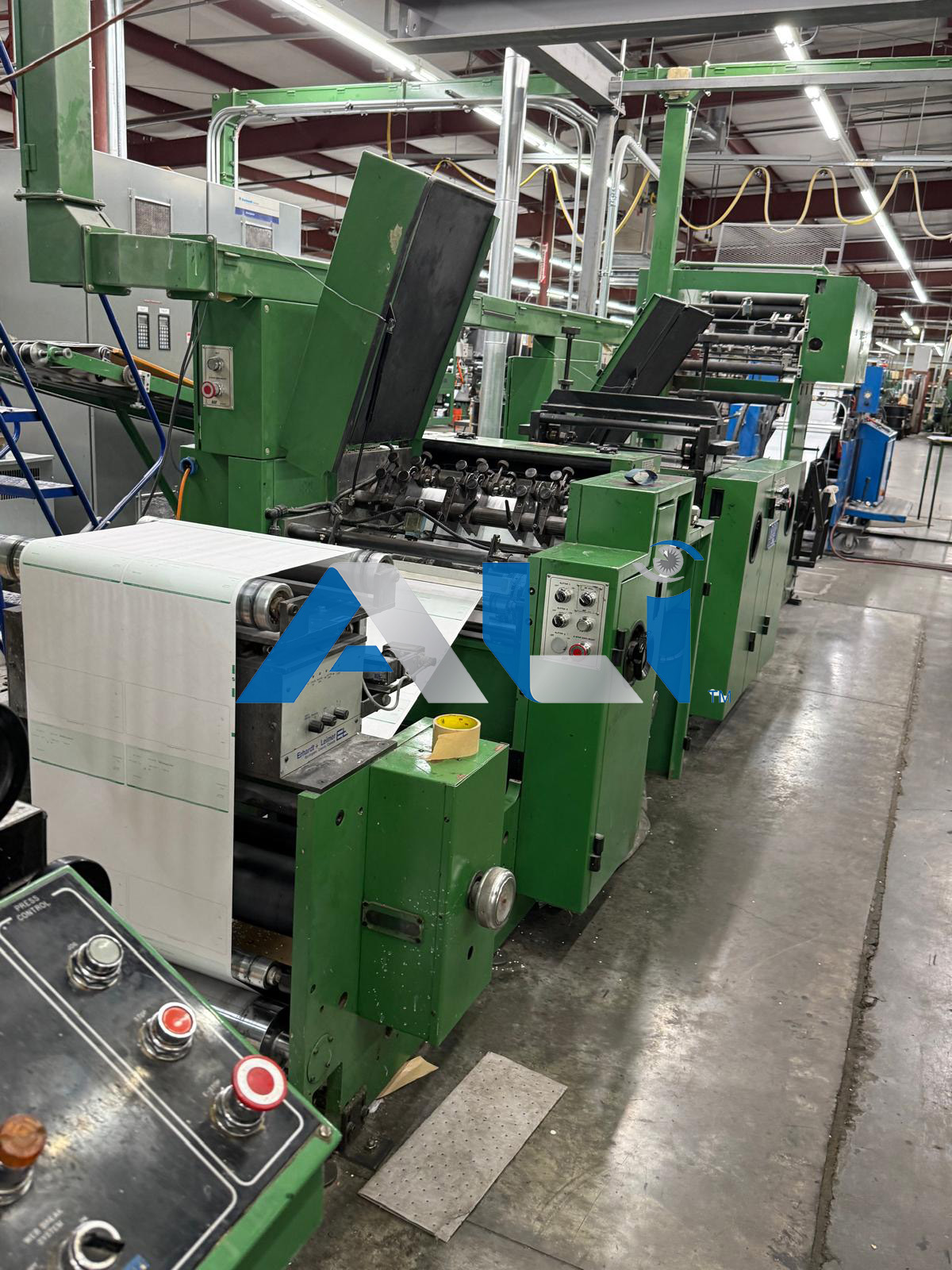

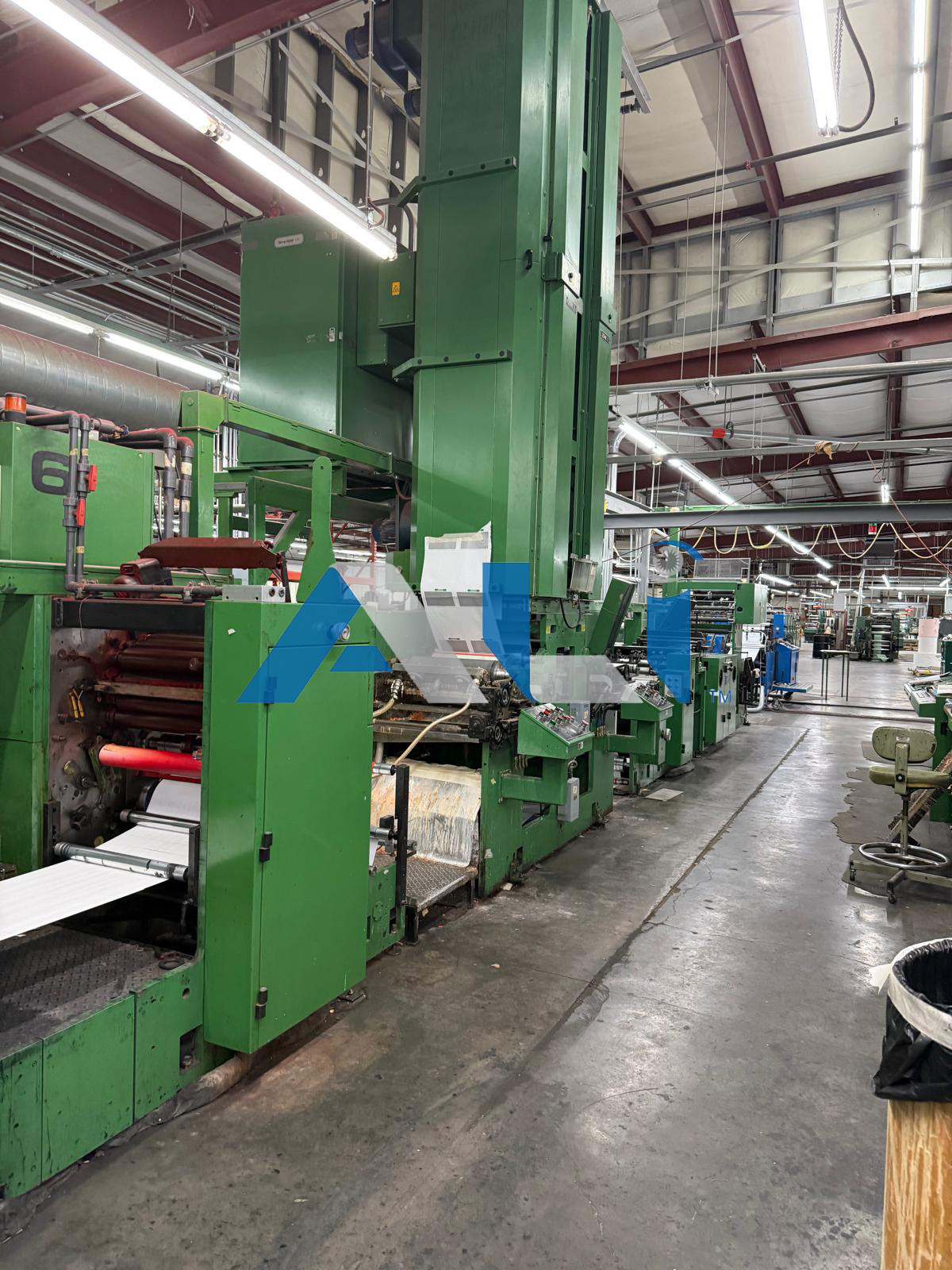

1992 SR200 RDP Variable Size Press
Cylinder Size - 17", 22", 28"
Very little use on machine
Pressure Sensitive
Postcards
Government 1099 forms

General

• Speed - Mechanical Drive -50fpm to 1200fpm

• Gear Lubrication - Continuous Oil bath

• Drive Train - Shaft with flexible steel disk couplings at gear boxes

• press Drive - Electric DC Drive

• Max web width - 20 1/2"

• Max print width - 20"

• Cylinder Size - 17", 22", 28"

• Web Break Detectors - Electric eye style mounted over the web

• Frames - 1.25" Steel (2P inside frames)

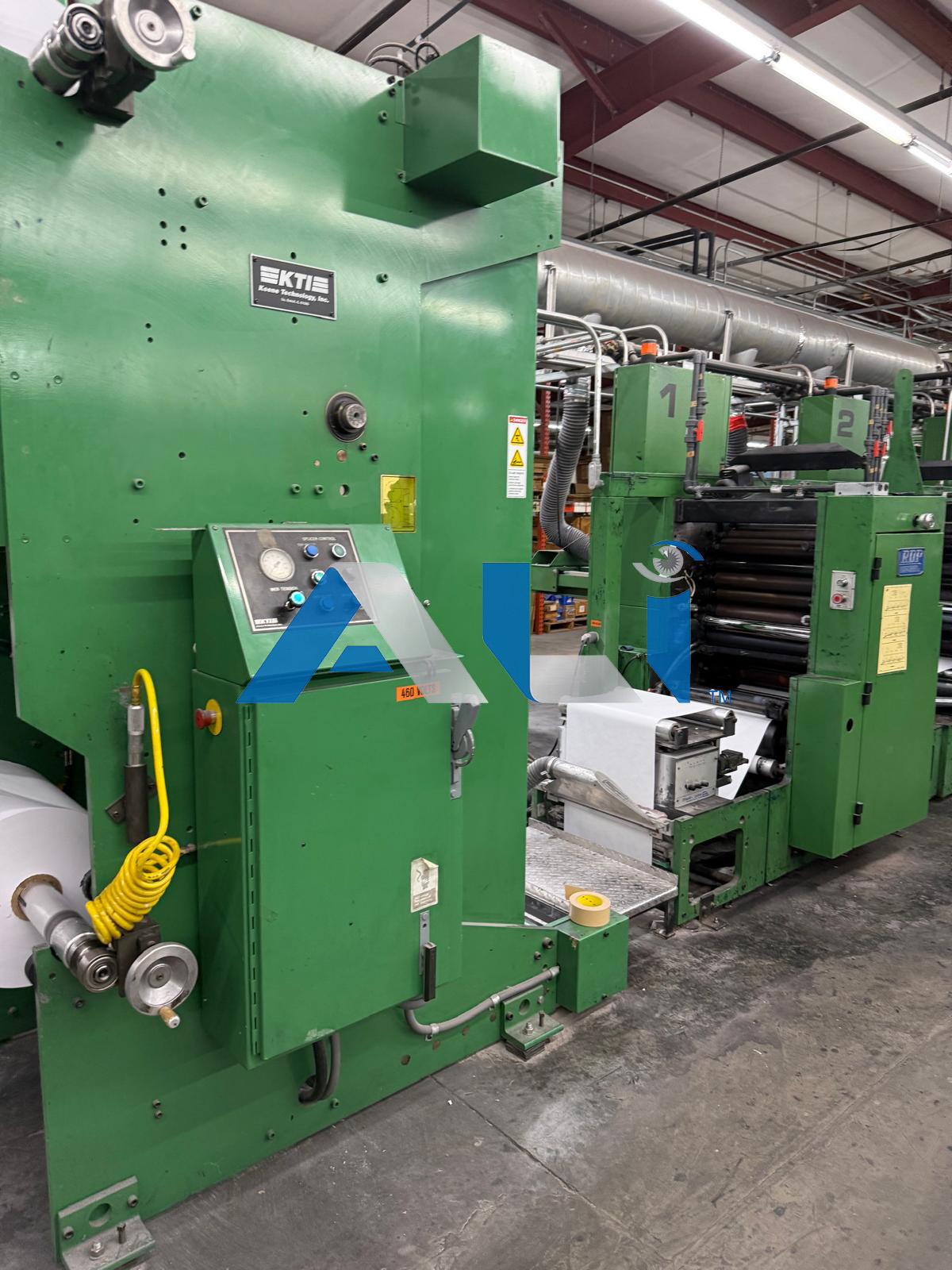

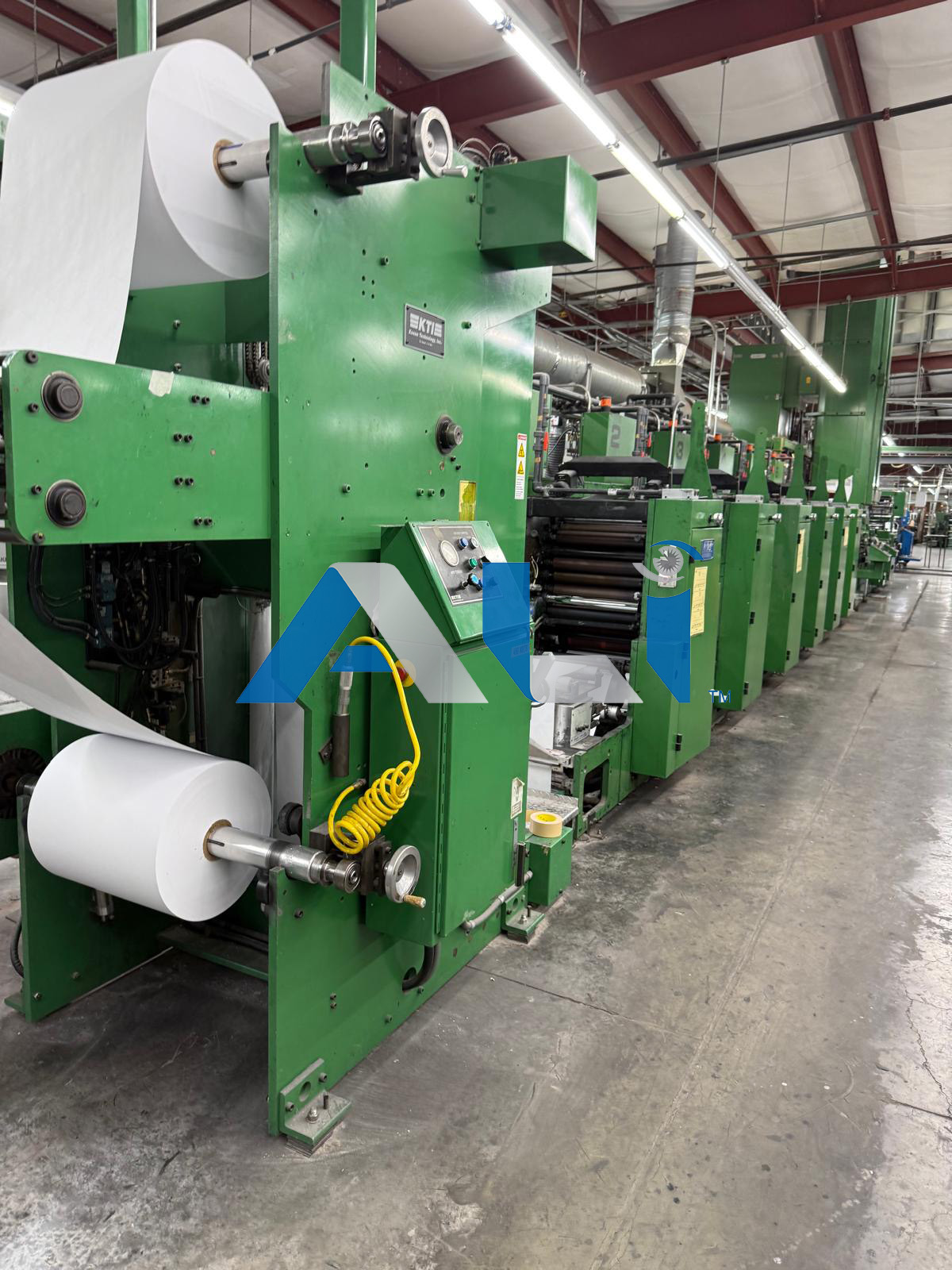

Unwind

• KTIMode11.S2150.BAutomaticLapSplicer

• Max web Width - 21"

• Max roll Diameter - 50"

• Sized to lift 21 web width (50" diameter)

• Inside core diameter - 3", 5"

• Programmable decurler

• Doyle two-sided web cleaner

• E & L Electronic web guide

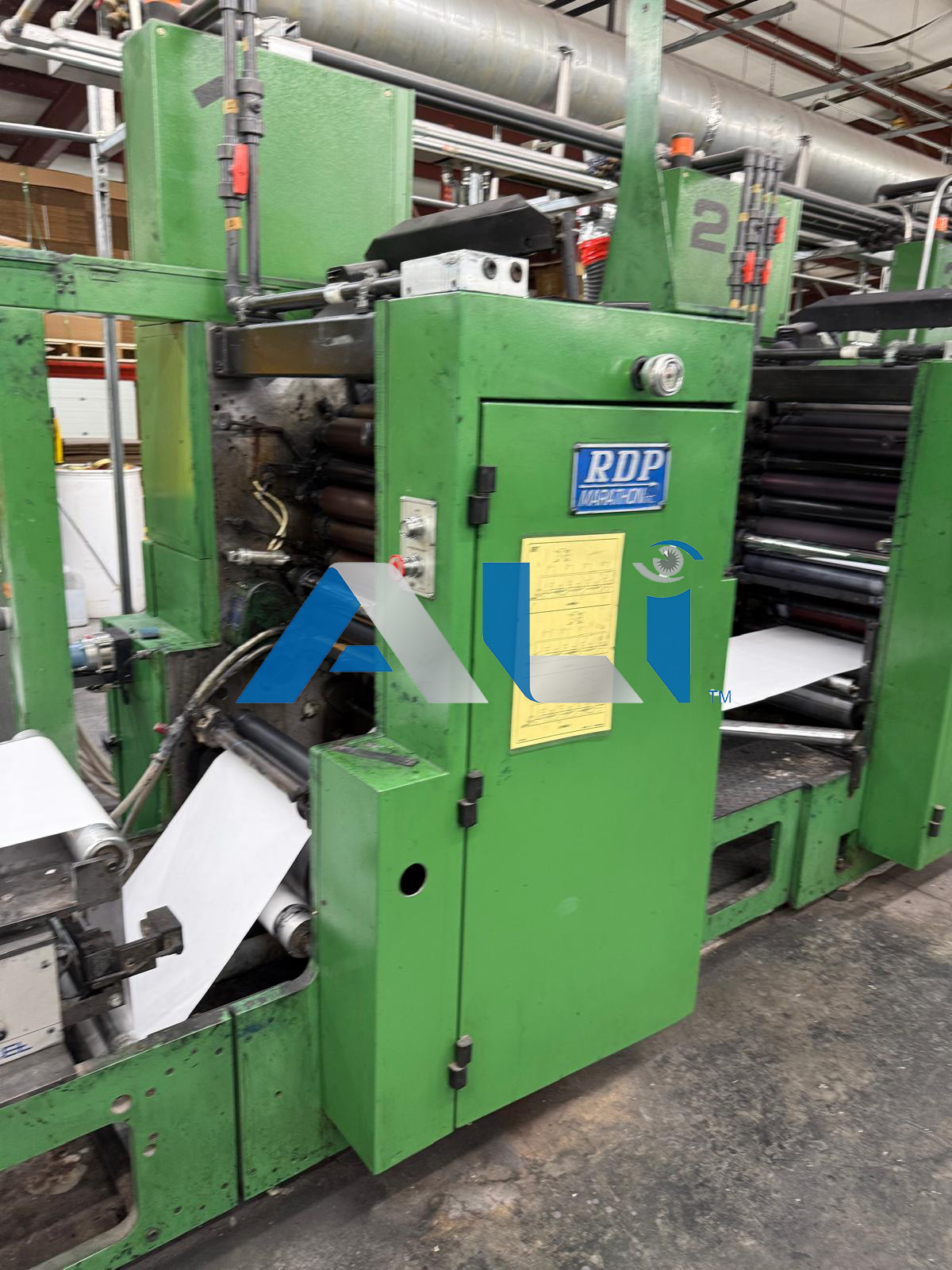

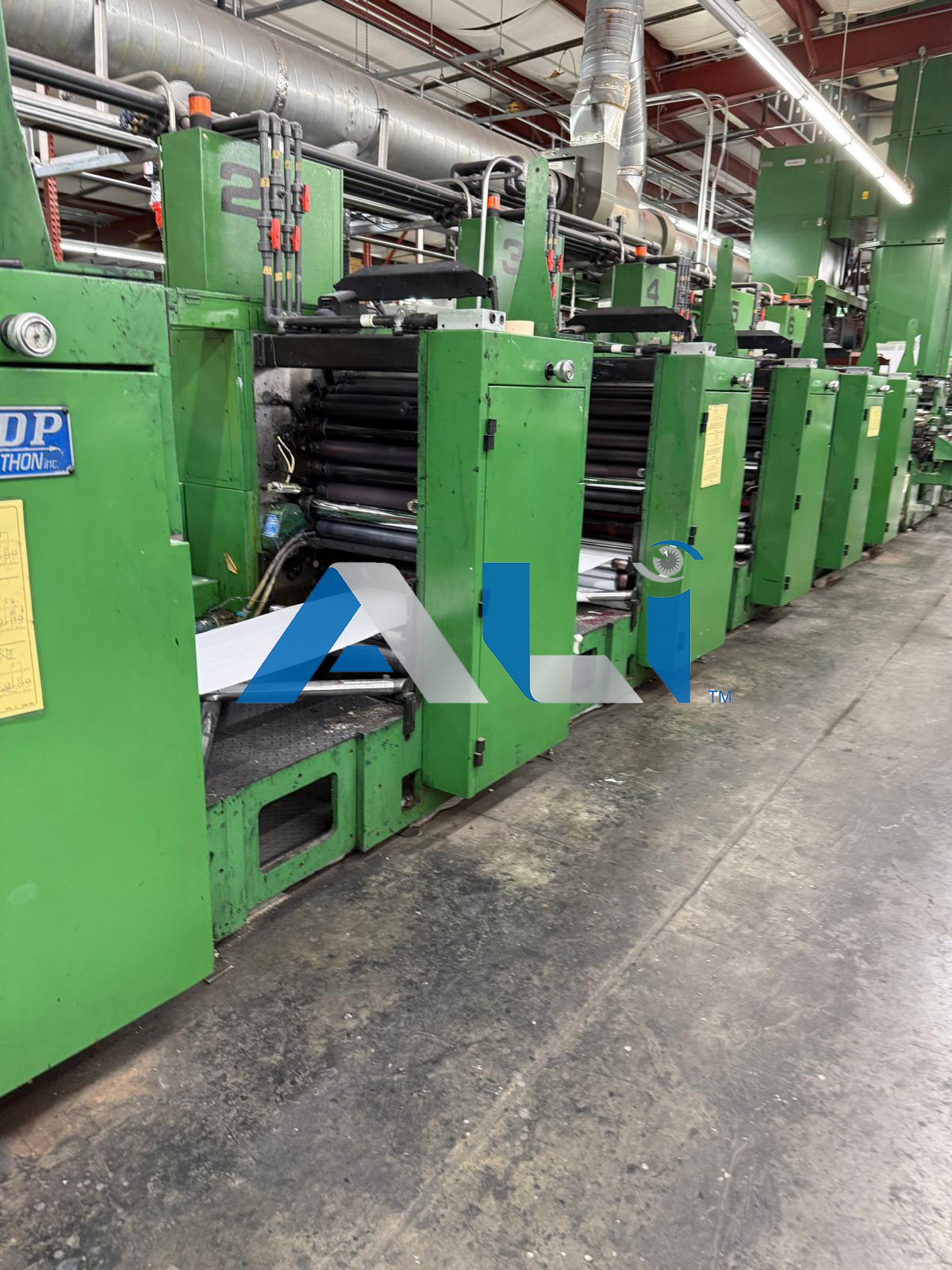

Print Units

• NO. print Towers 6

• Print Insert Sizes - 17", 22", 28" (6 of each size)

• Four form roller system

• Reel-in Blankets

• Motorized Circ. Register with remote control  Motorized plate side lay with remote control  plate cylinder skewing and form roll adjustment  Auxiliary Unit drive motors

• 360 deg circumferential gear boxes

• Centralized, refrigerated recirculator

• Chilled oscillators

• Dahlgren dampening system

• Chilled vibrators (Tri Service Chiller)

• Ink Agitators • Auto ink roll wash-up

Numbering Inserts

• One each Of 17” , 22” and 28” -  used in last print tower

• Two 6” marginal sleeves of each size.

Back Printing

• Turn bars between units I & 2, 2 & 3, and 3 & 4

UV Dryers

• Prime UV 400-600 watt curing system

• Prime Smart system control

• Inter-station drying

Coater/Dryer

• IDC Model* SFC-205 (2 coating heads for front & back)

• proctor Strayfteld two-sided Radio Frequency Dryer

• Cylinder sizes - 17", 22", 28"

Web Viewer

• BST Promark Eagle two-sided web viewer

Other in-line features

• Linehole punching (one)

• Provision for die insert

• Vertical perfs (2 Shafts)

• Double filehole unit (Can substitute magnetic diecut cylinders)

• Two cross perf inserts  (Can substitute magnetic diecut cylinders)

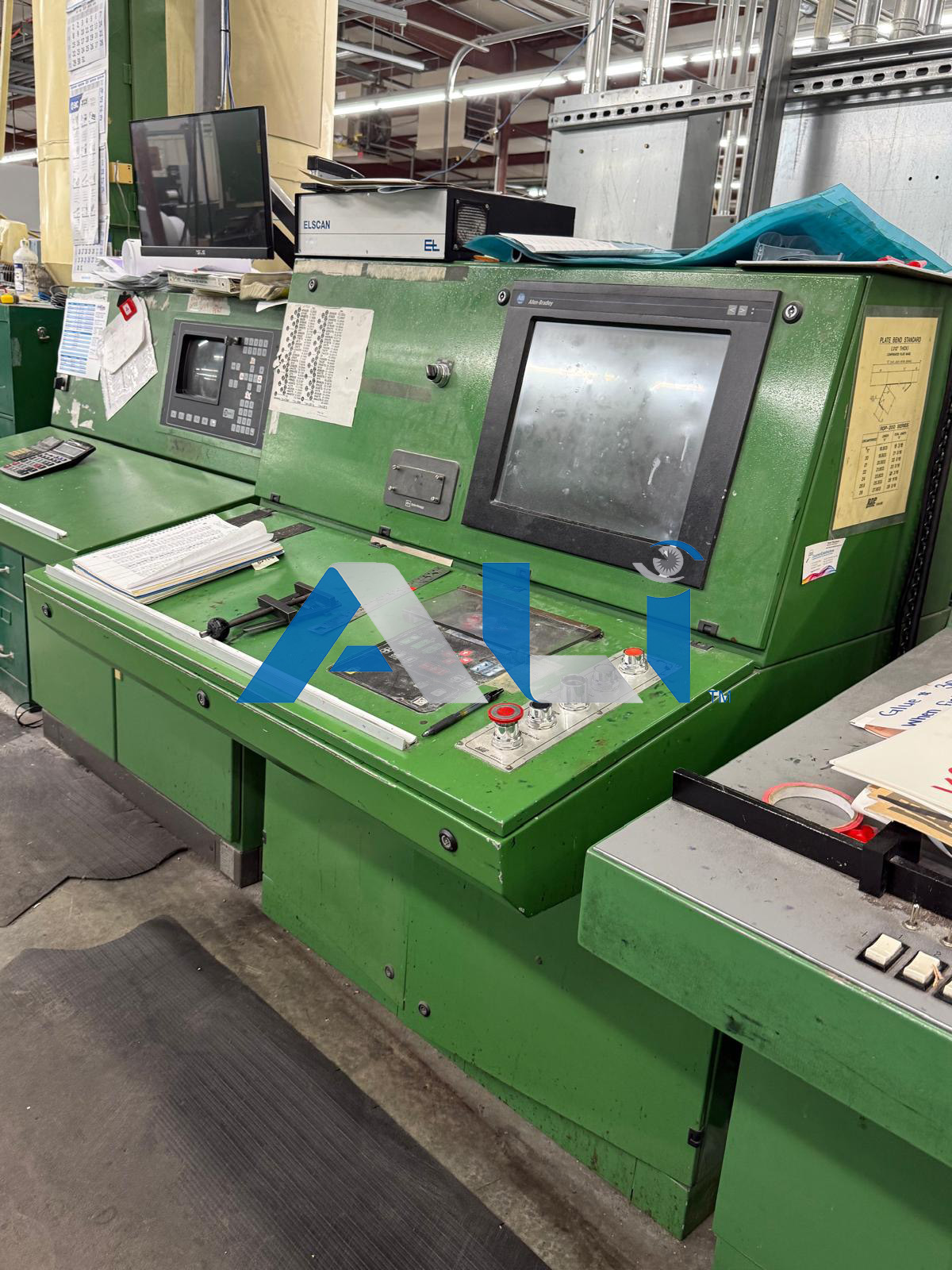

Automatic Register Control & Console
Ink Key Control & Console
Press Contorl Console

Rewind

• 50” Rewinder

Folder

• Fordyce Folder

Sheeter

• ESS Pantec sheeter (Starwheel type)
